Rigid inflatable boats

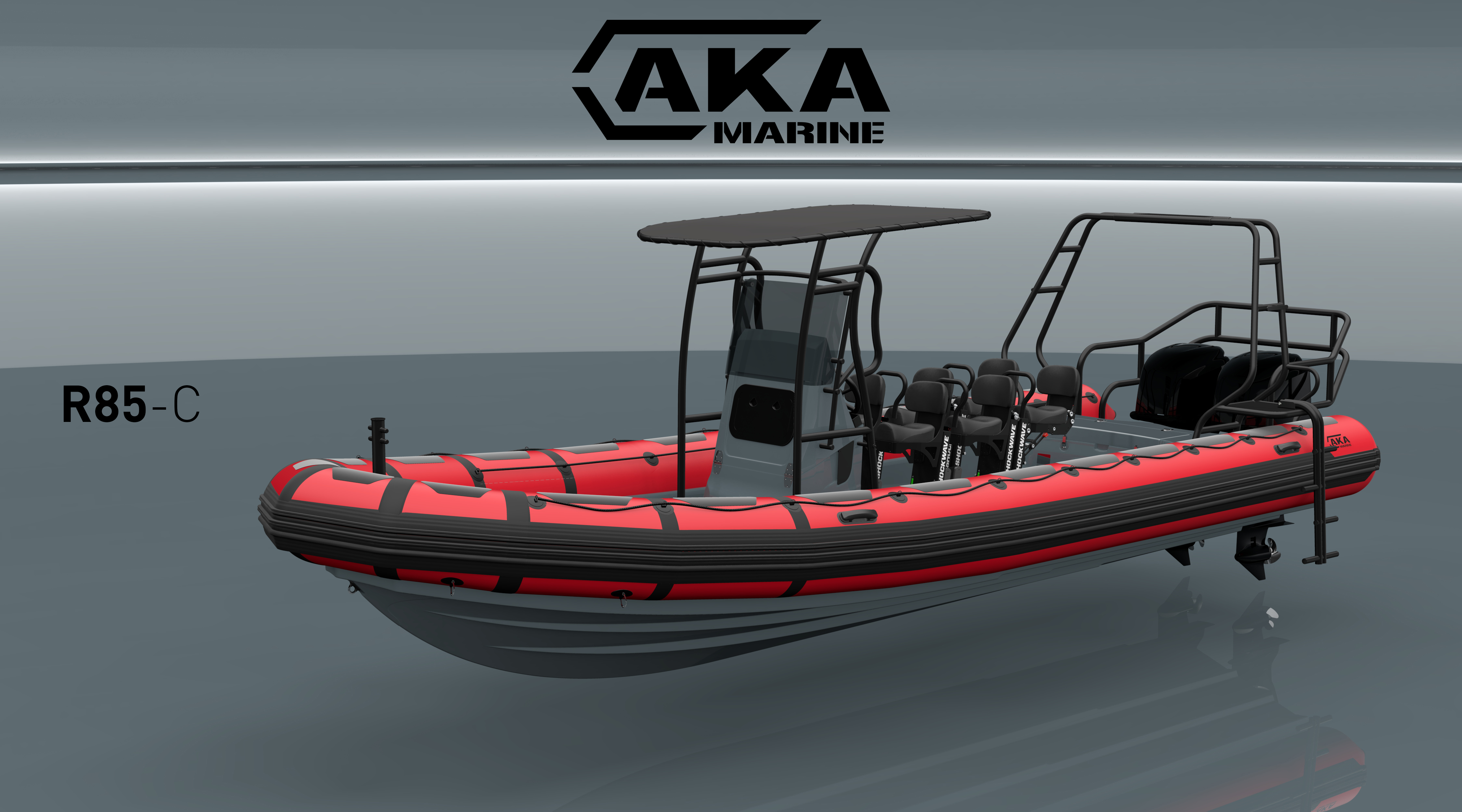

R85-C

Rigid inflatable boat | C-Series

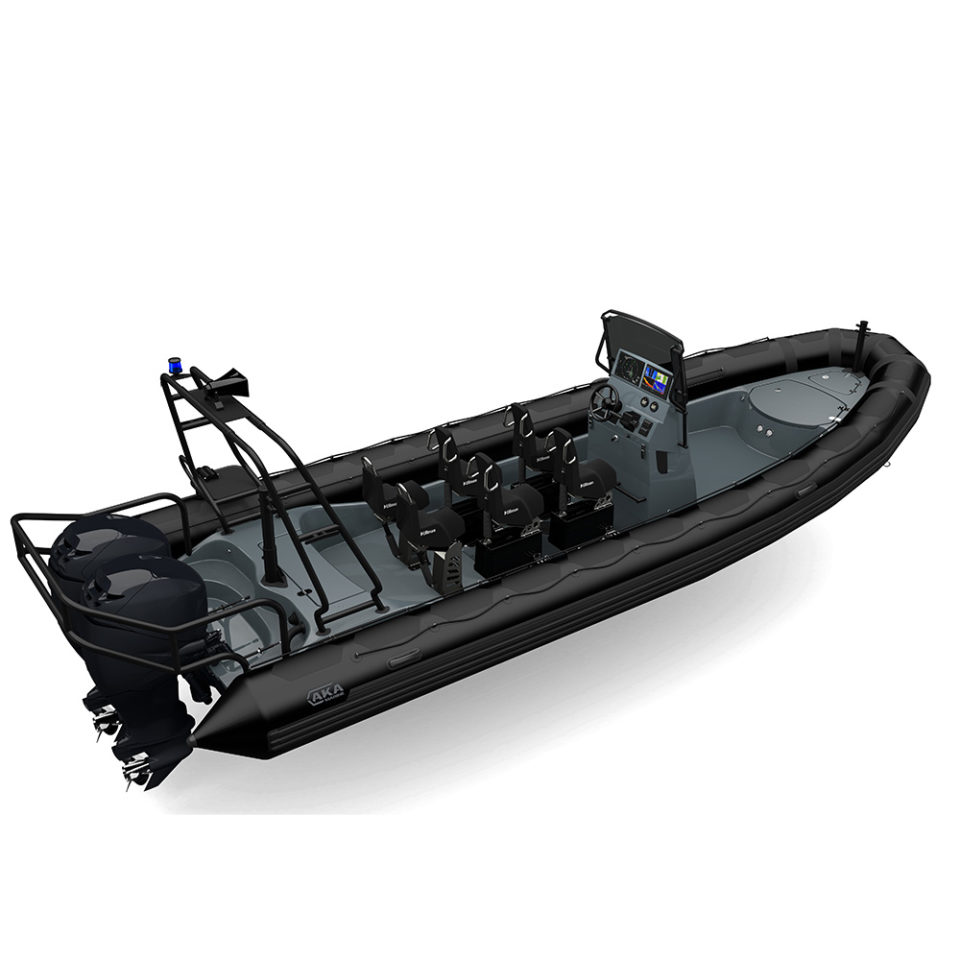

R85-C CSM-CR Military Black

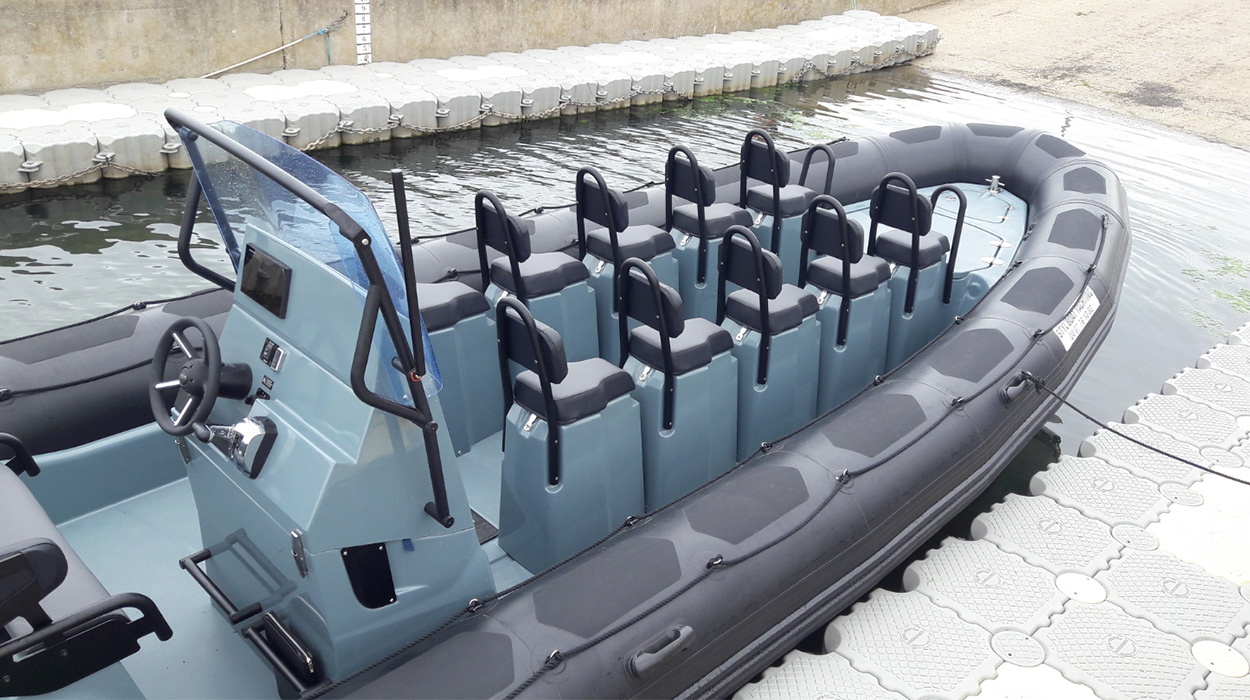

R85-C CSM-CR Snorkeling Grey

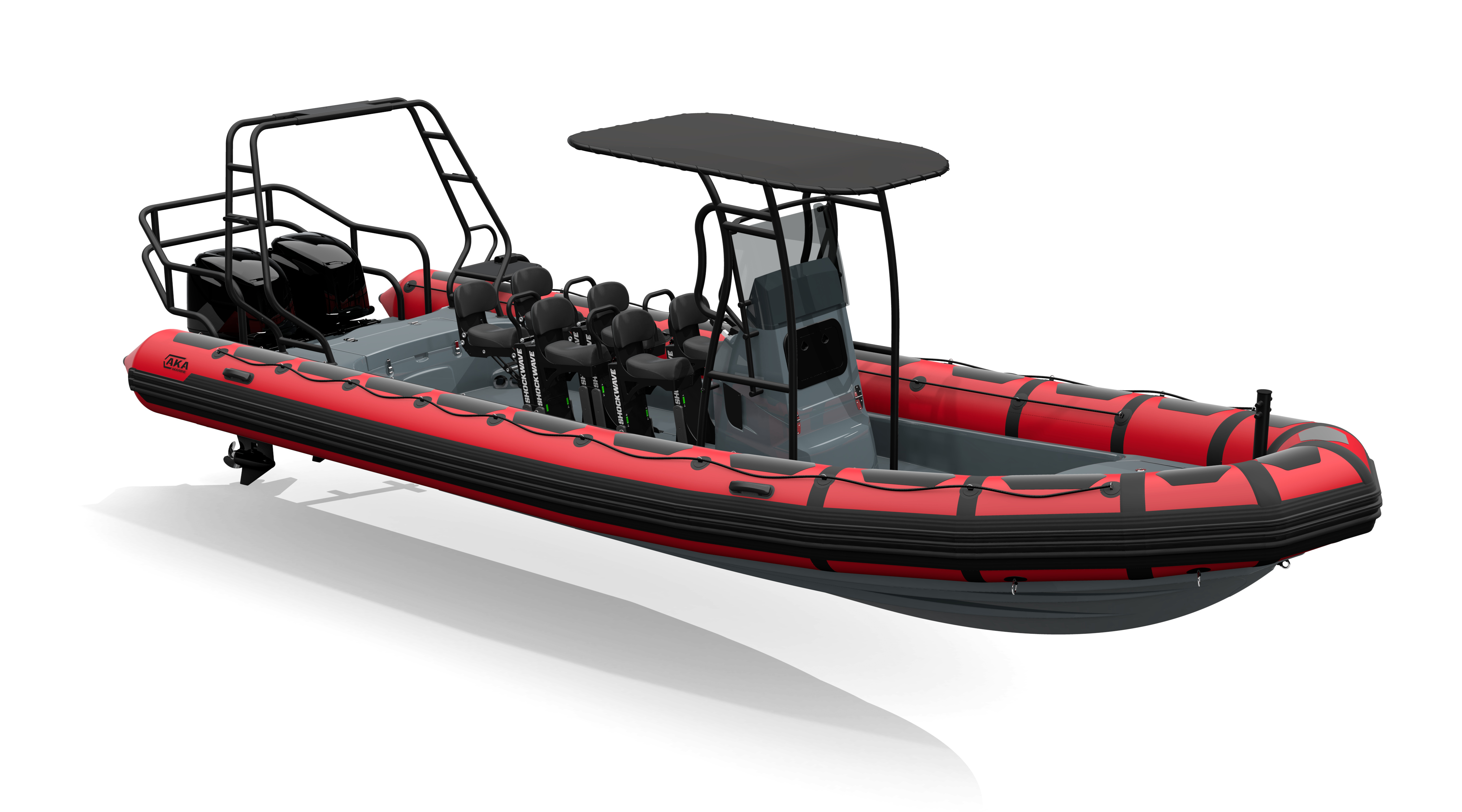

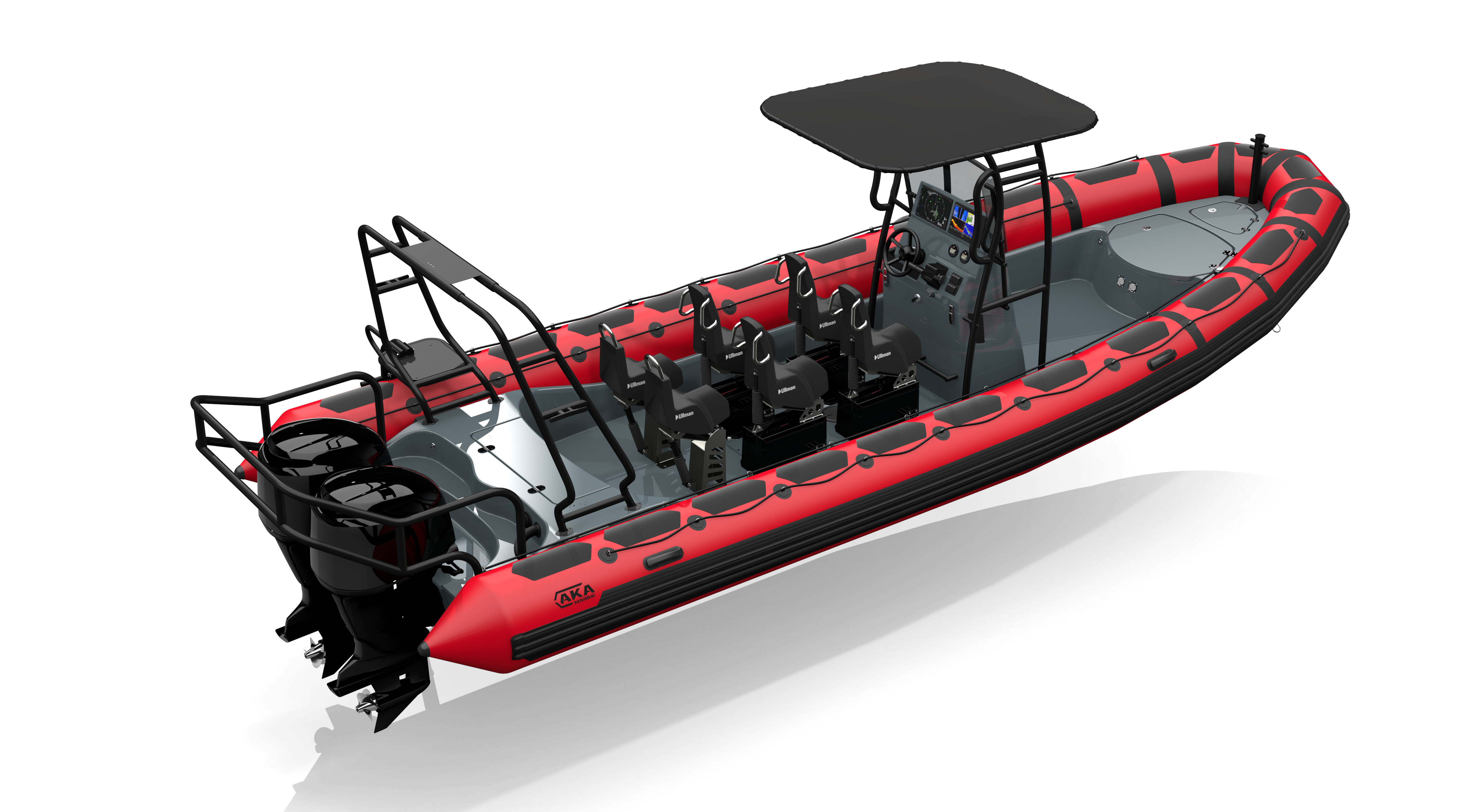

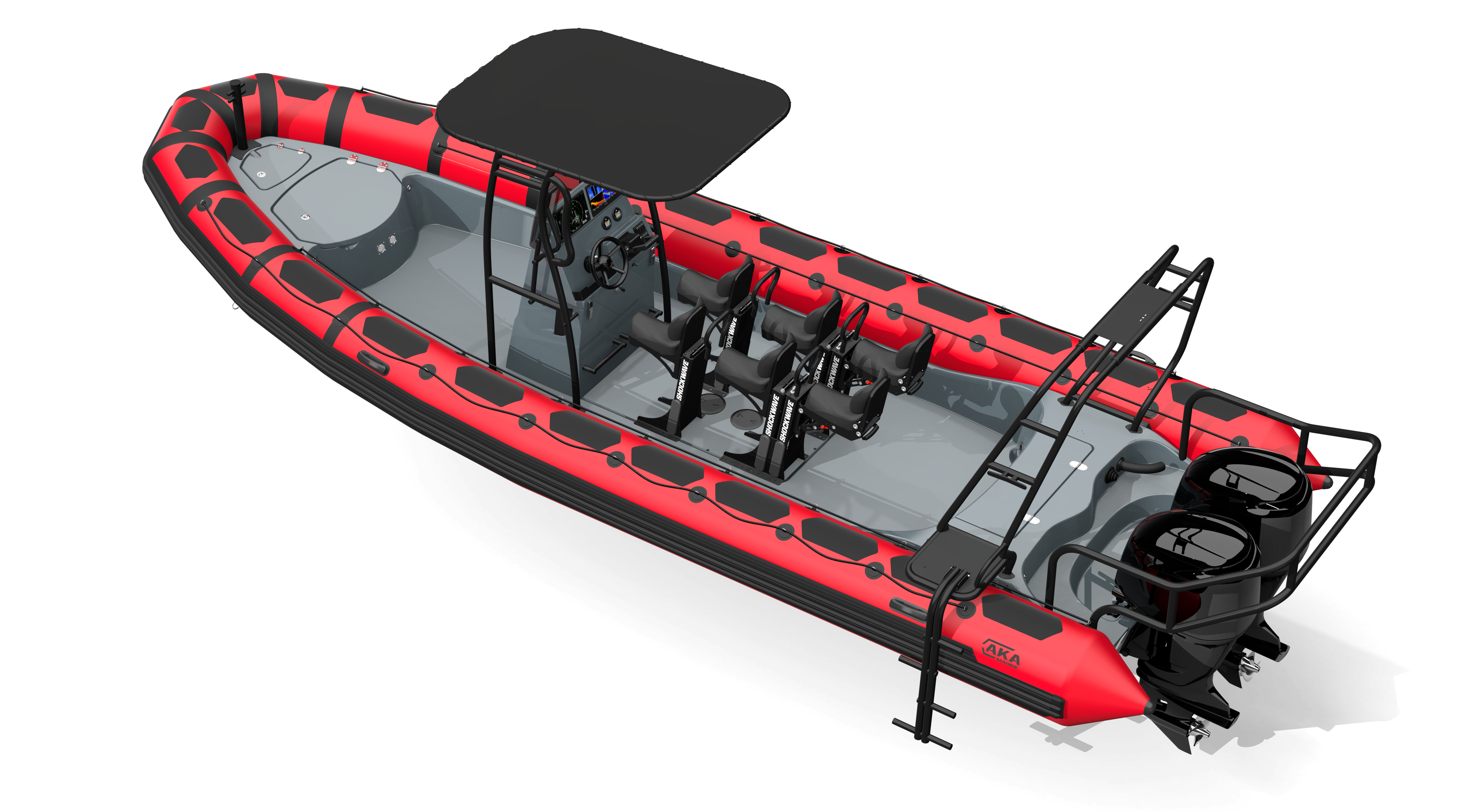

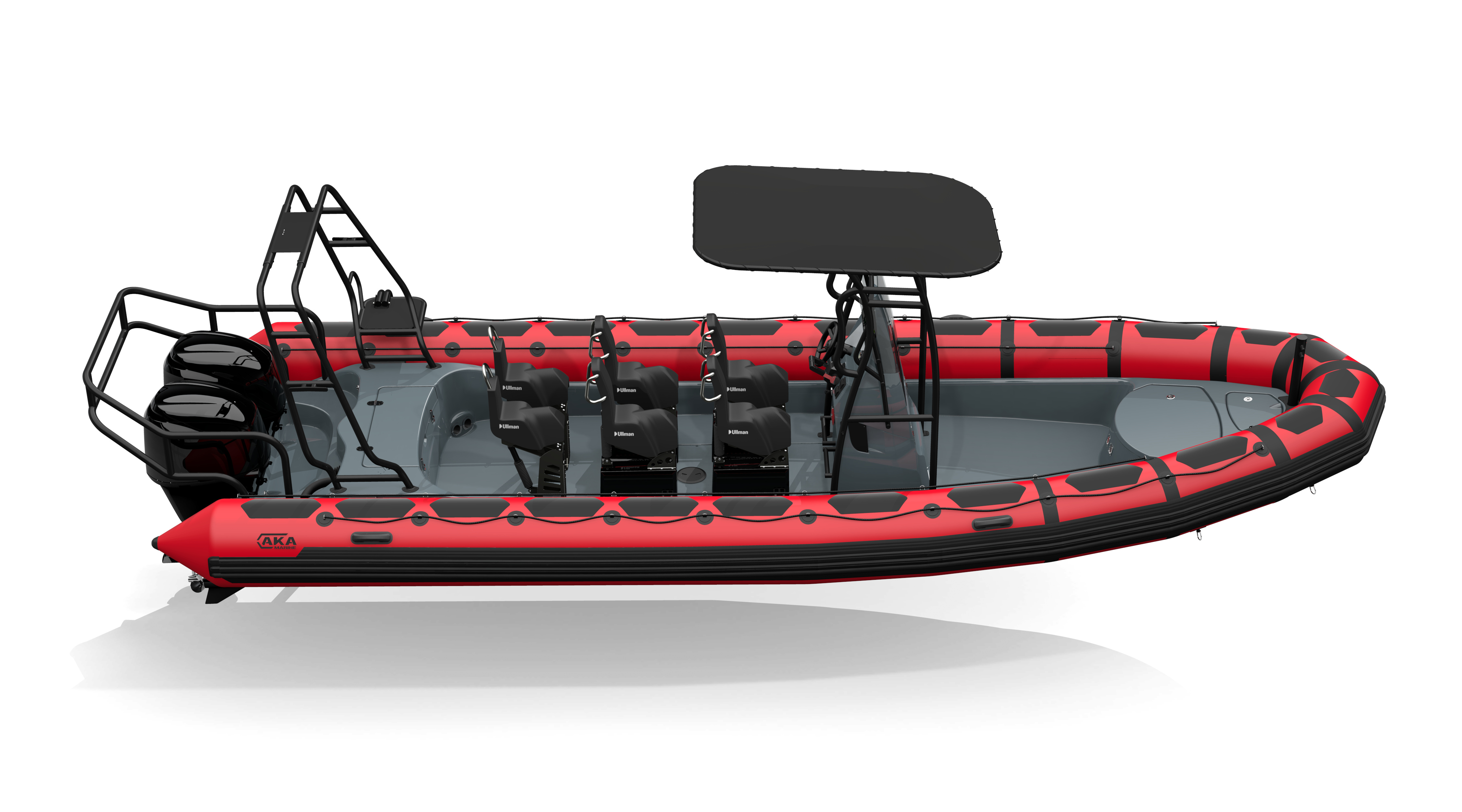

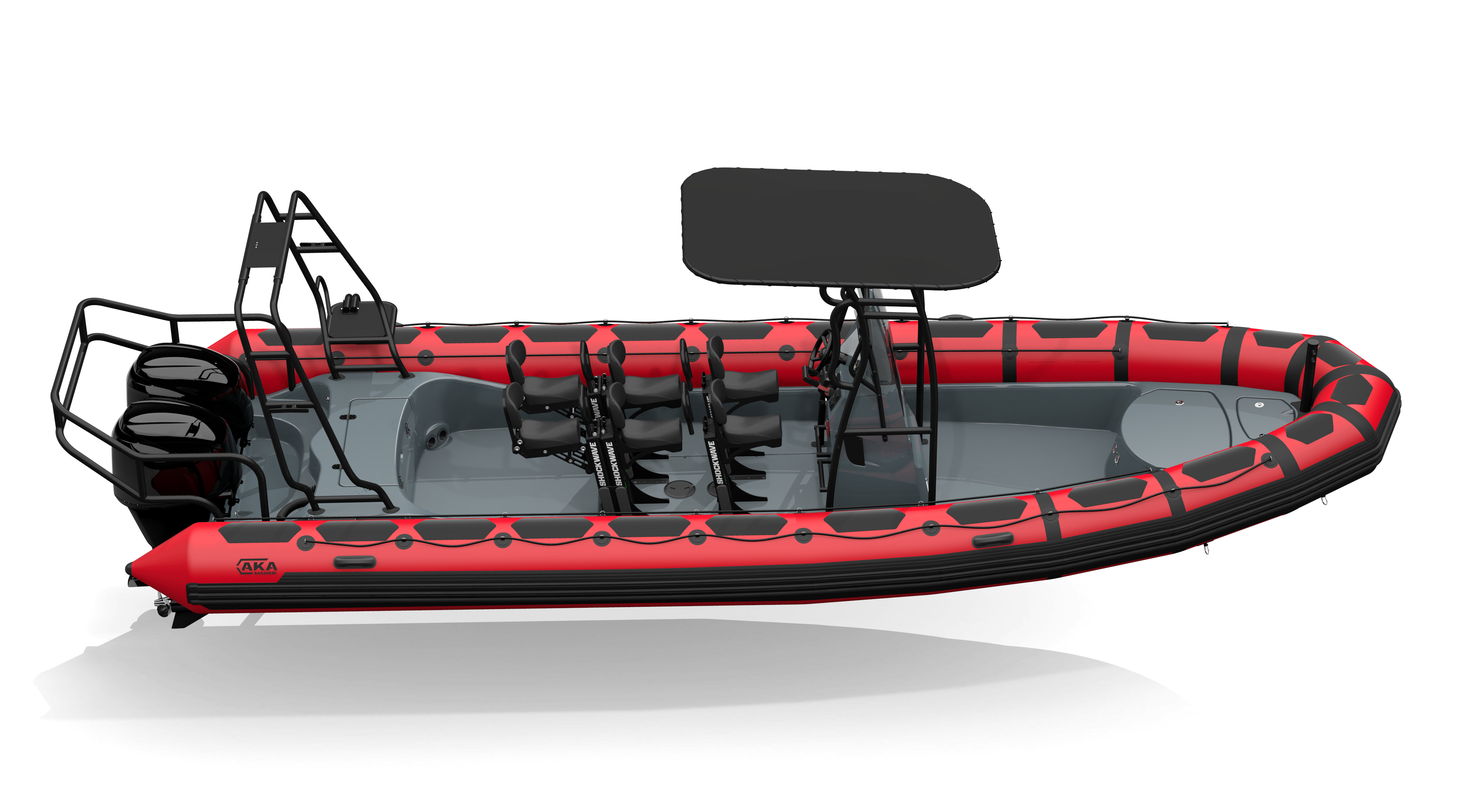

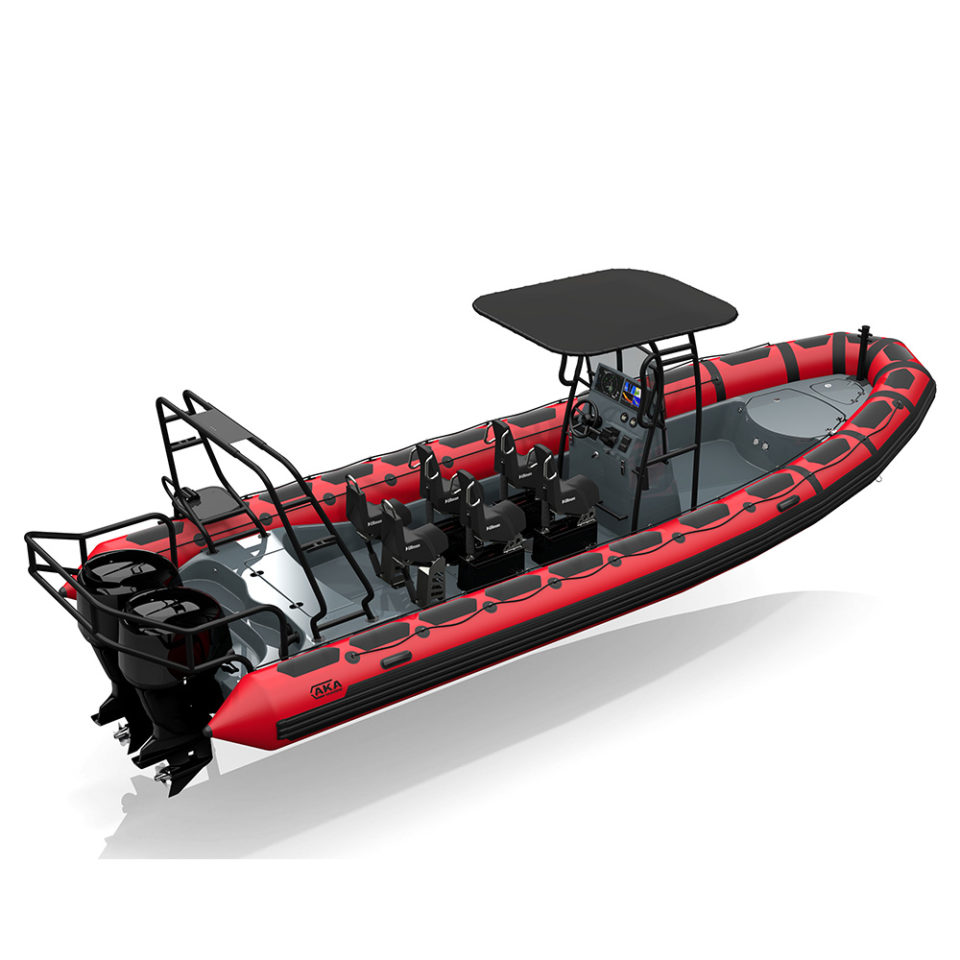

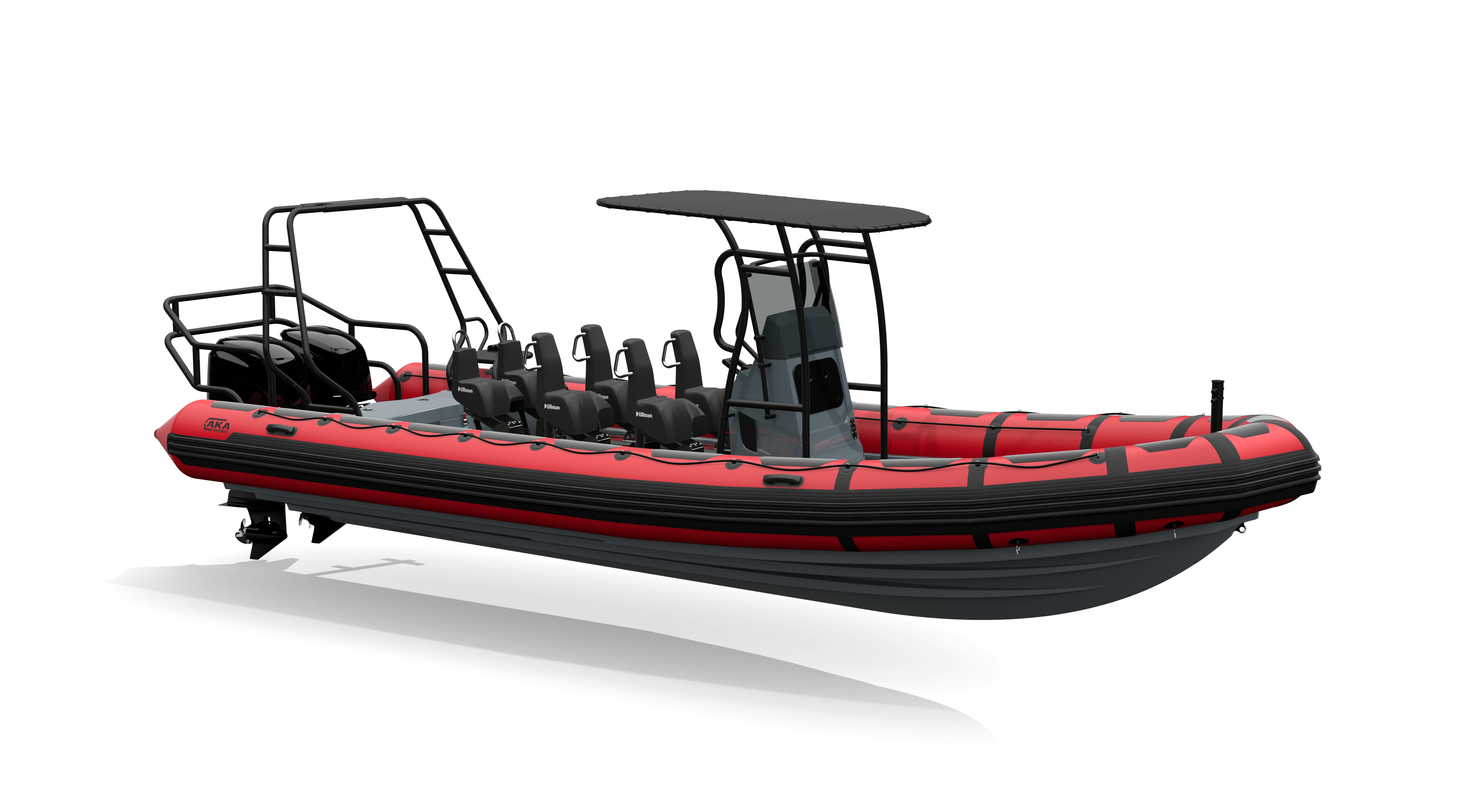

R85-C CSM-CR Red
R85-C CSM-CR Military Black
R85-C CSM-CR Snorkeling Grey
R85-C CSM-CR Red

RIB-C Series

A multi-purpose fast responder RIBs with twin engine capacity, the RIB-C Series (available in CSM-CR) is the most versatile in its class.

It features a self-bailing deck, an under-deck cable routing and removable, slide-on, tubes.

Colors

CSM-CR 1670 dtx Black
CSM-CR 1670 dtx Medium grey
CSM-CR 1670 dtx Orange

Key features

  • Multi-purpose Fast Responder RIBs
  • Twin engine capacity
  • Highly customizable
  • Long range autonomy (built-in fuel tank)
  • Under-deck cable routing
  • Self-bailing deck
  • Tubes are in CSM-CR (Chlorosulfonated Polyethylene – Neoprene)
  • Removable, slide-on, tubes

Pictures

Video

Recommended for

Law enforcement
  • Patrol
  • Coast Guard
  • Police
  • Administration / Authorities
More for law enforcement use
Professional
  • Marina, port activities
  • Expeditions
  • Hotels & resorts
  • Clubs
More for professional use
Search & rescue
  • First responders
  • Fire brigades
  • Surveillance
More for search & rescue use
Military
  • Army
  • Navy
More for military use
Technical specifications
Dimensions
(meters - feets/inches)
Overall length
8,5 - 27'11''
Inside length
7,45 - 24'5''
Overall width
3 - 9'10''
Inside width
1,85 - 6'1''
Buoyancy tube diameter
0,6 - 1'12''
Outboard data
Shaft
Ultralong
Min. recommended power (Hp)
250
Min. recommended power (kW)
187
Max. recommended power (Hp)
300
Max. recommended power (kW)
223
Max. power allowed (Hp)
350
Max. power allowed (kW)
258
Max. weight of outboard (kg - lbs)
393 - 866
Max. speed (km/h - mph)
91 - 57
Capacity
Passengers (ISO B/C)
8/25
Max payload* (kg-lbs) Cat C (ISO14945)
3250- 7165
Max payload* (kg-lbs) Cat B (ISO14945)
2000- 4409
Total weight (kg - lbs)
1450 - 3197
Airtight compartments
7
Hull storage dimensions
(meters - feets/inches)
Length
7,78 - 25'6''
Width
2,26 - 7'5''
Height
1,37 - 4'6''
Hull angle
24°
Design category
European directive N° 2013/53/ EU
B/C
Twin-engine data
Shaft
Extralong
Max. power allowed (Hp)
2x250
Max. power allowed (kW)
2x184
Max. weight of outboard (kg - lbs)
2x300 - 2x661
* The maximum payload rating has been calculated according to ISO standard (14945). Operating at or near maximum payloads is only advised in calm water and at reduced speeds. B category maximum payload specifications may vary according to the outboard and equipment configuration, and will go through individual certification by notified body.
Features
Buoyancy tube

  • CSM-CR 1670 dtx fabric (Chlorosulfonated Polyethylene – Neoprene)
  • Removable tube system
  • Anti-skid patches
  • Heavy Duty, anti-chafing, bow fender system
  • Polyester internal / external Grab line
  • Leafield inflation valves
  • Leafield pressure relief valves
  • Extra Large profile rubbing strake
  • 4 external handles
  • Reinforced cone ends

Hull

  • Fibreglass deep V-shaped hull
  • Moulded non-skid, self-bailing deck
  • Bow locker
  • Stern technical compartment
  • 1 Bow D-ring
  • 2 Towing rings
  • 4 High volume self-bailer
  • 2 Stern mooring cleats
  • 1 Stainless steel mooring bollard (100 mm)

Standard equipment

  • Built-in fuel tank + fuel/water separator : 400 L
  • Removable bow storage box
  • Electrical circuit with battery coupler and circuit breaker
  • 2 Bilge pump
  • 2 paddles
  • Foot pump & pressure gauge
  • Repair kit
  • Owner’s manual

Optional accessories

  • GRP Console Large
  • GRP Console XLarge
  • Double stainless steel bolster
  • Single stainless steel bolster
  • Jockey seat
  • Roll-bar
  • T-TOP
  • Bow rail
  • Tow post (bow/stern)
  • Rope guard
  • Diving cylinders holder
