Foldable inflatable boats

F53H-C

Foldable inflatable boat | C-Series (CSM-CR)

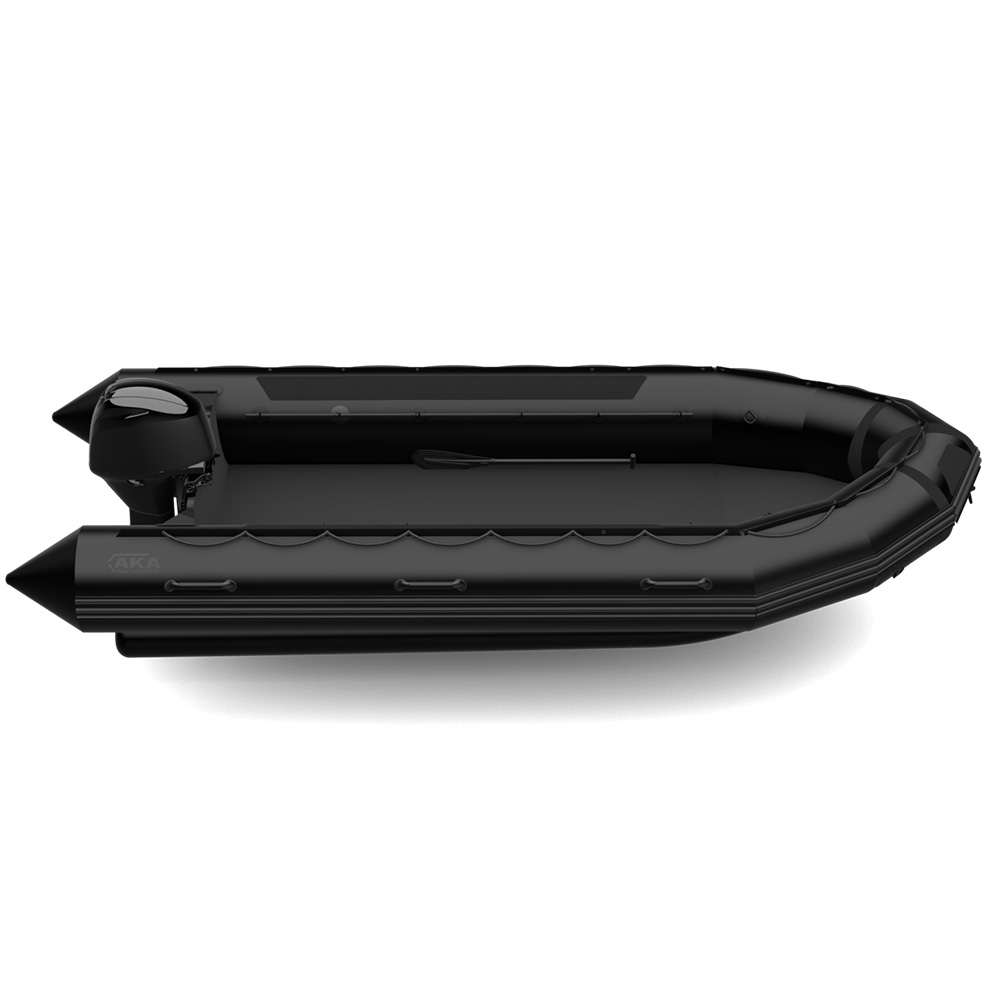

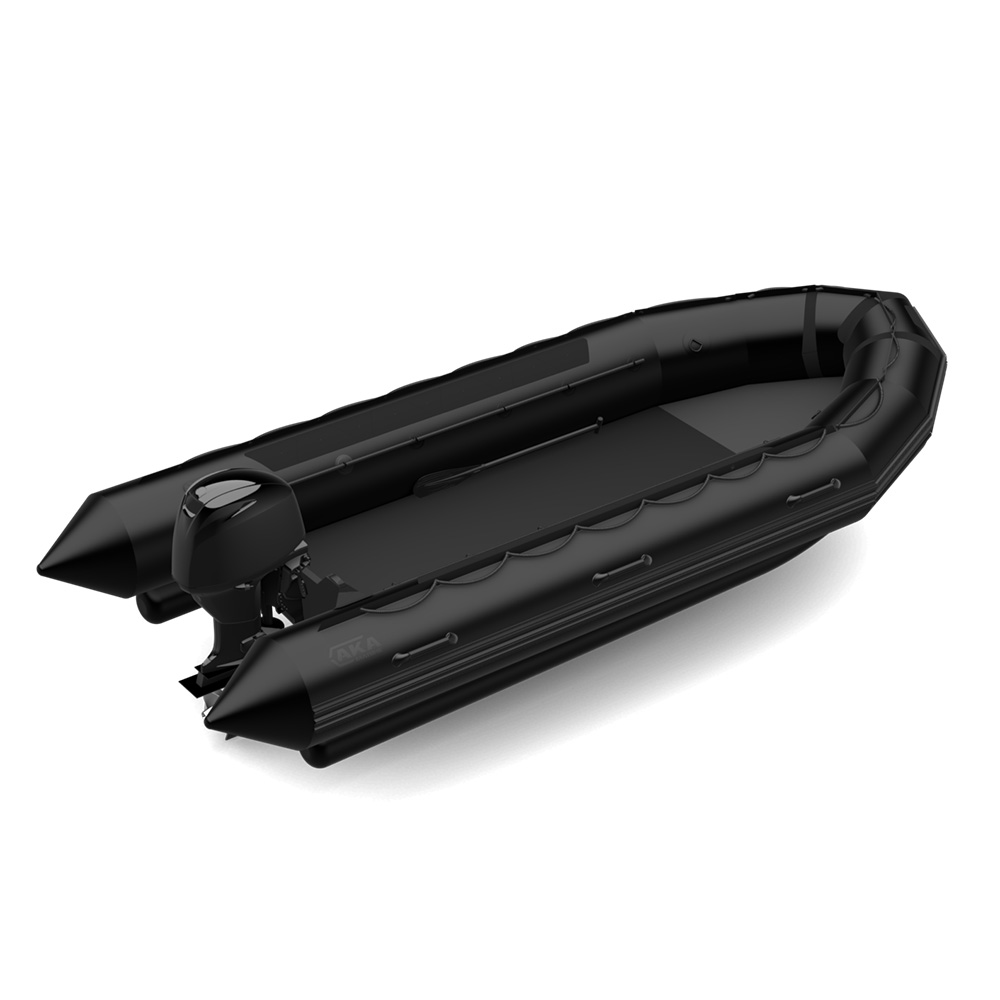

AKA_F53HC_BLACK

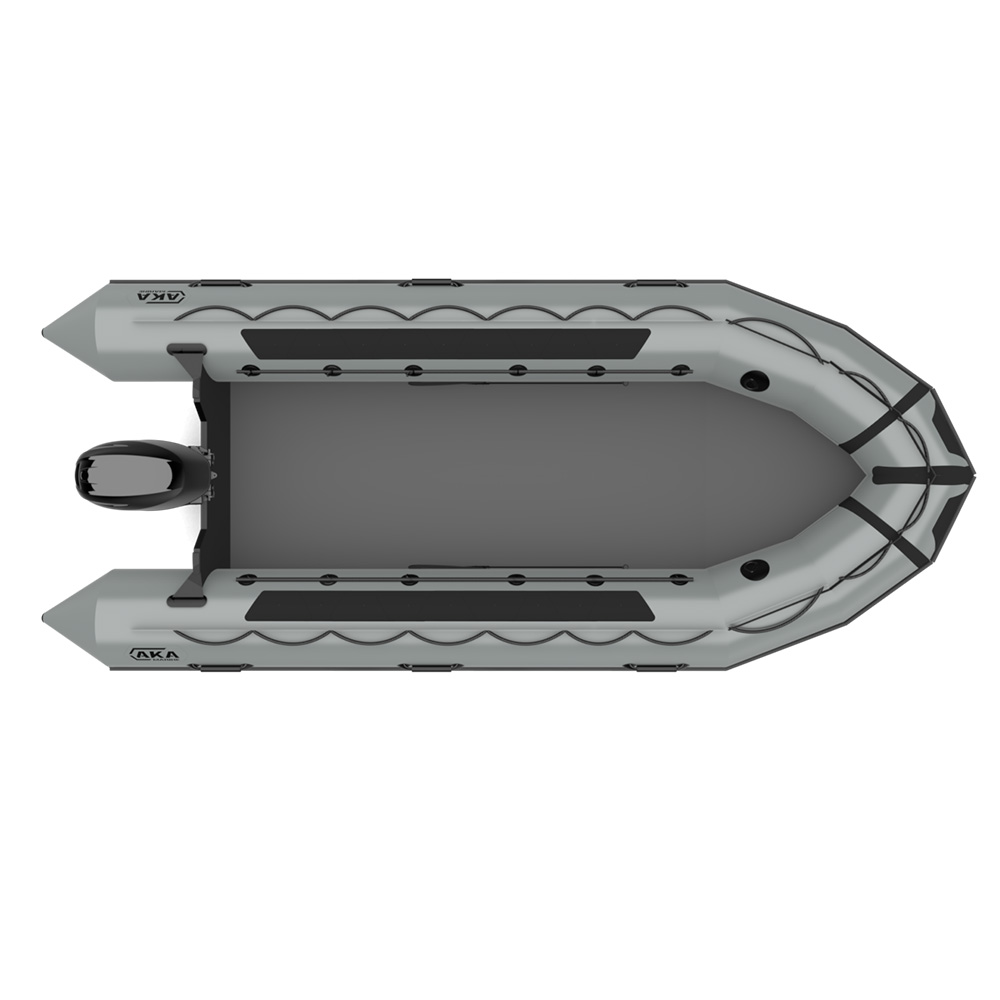

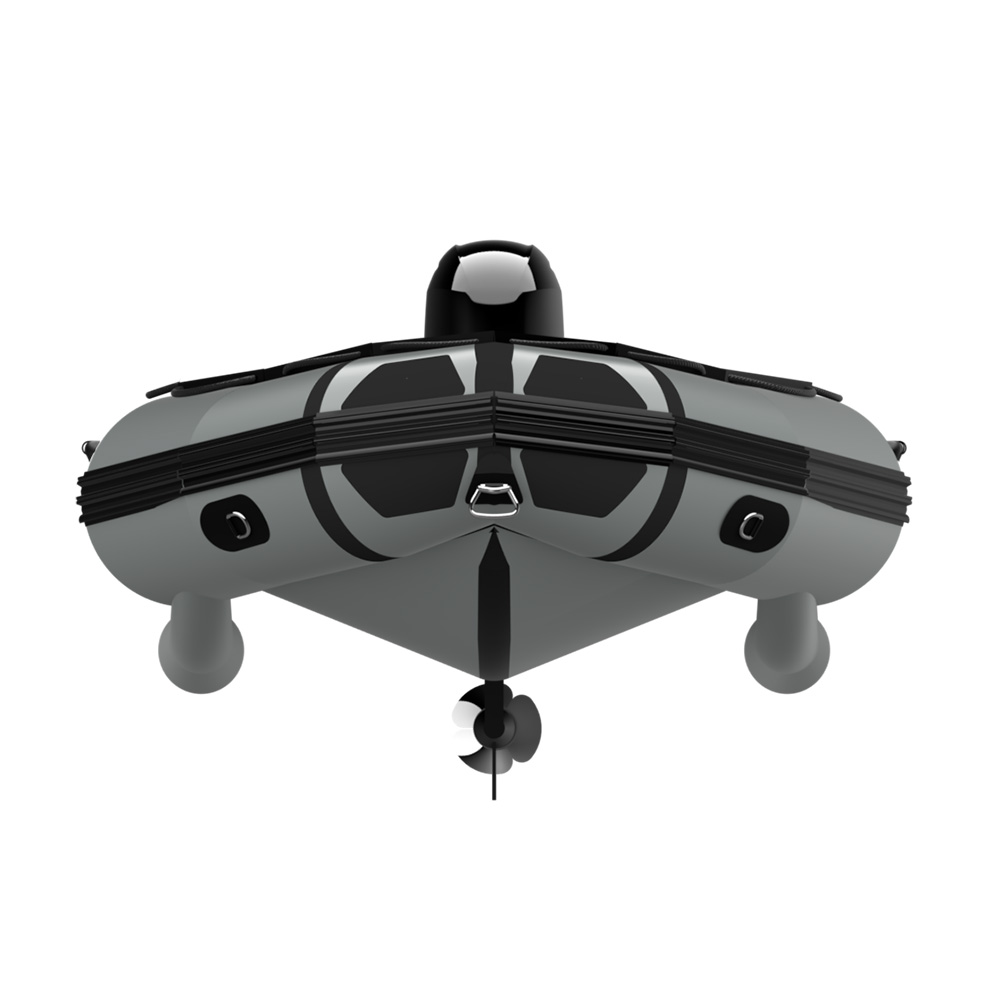

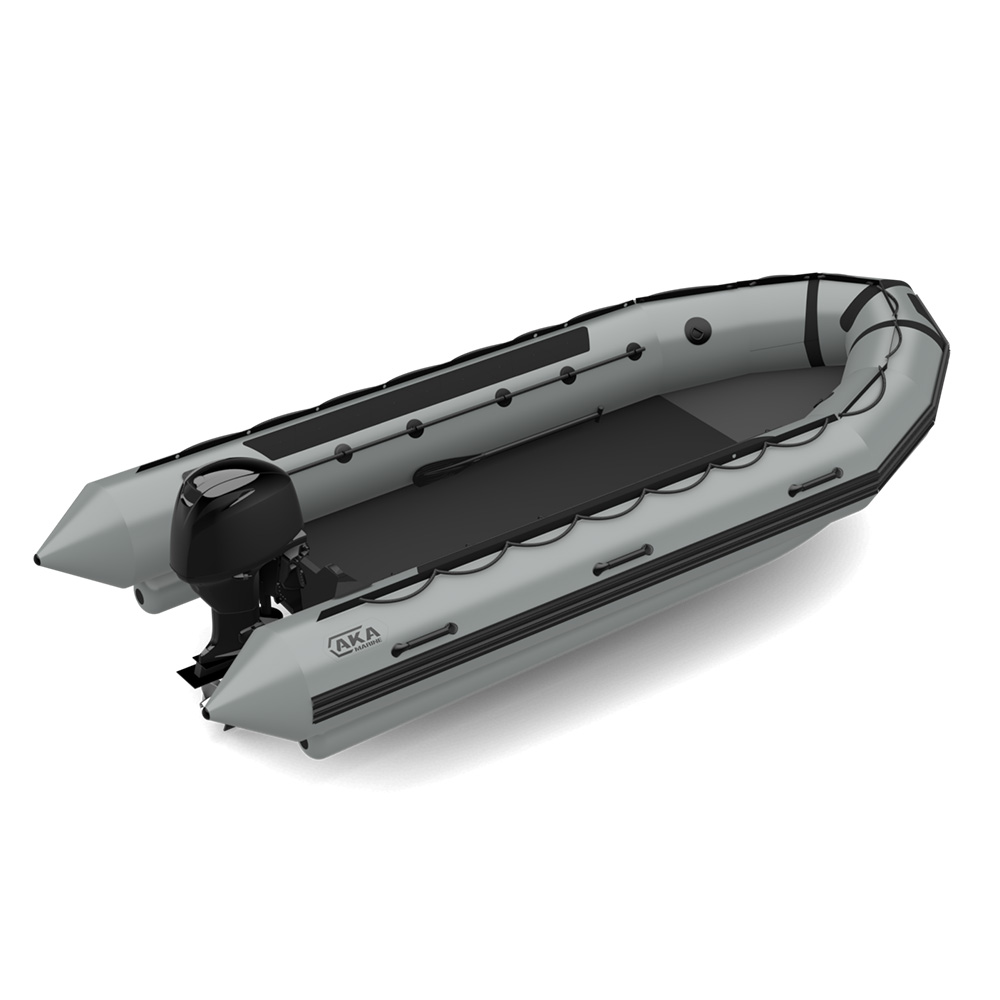

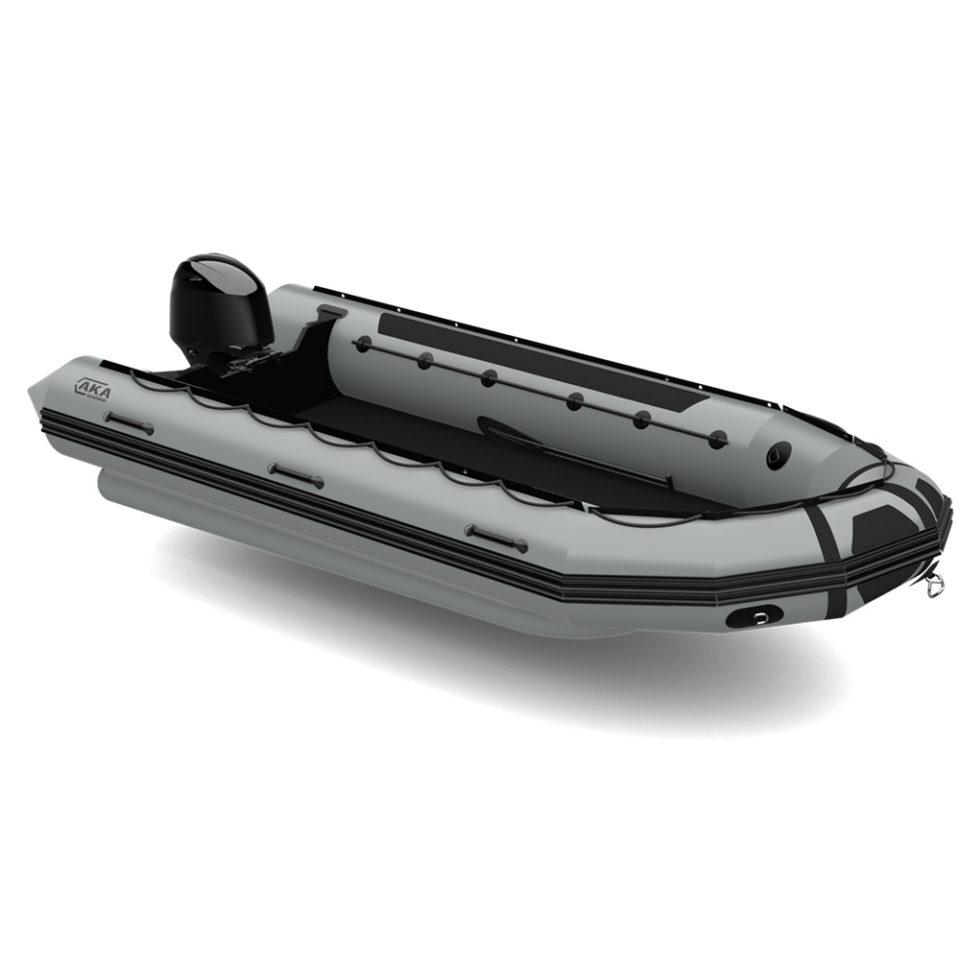

AKA_F53HC_GREY

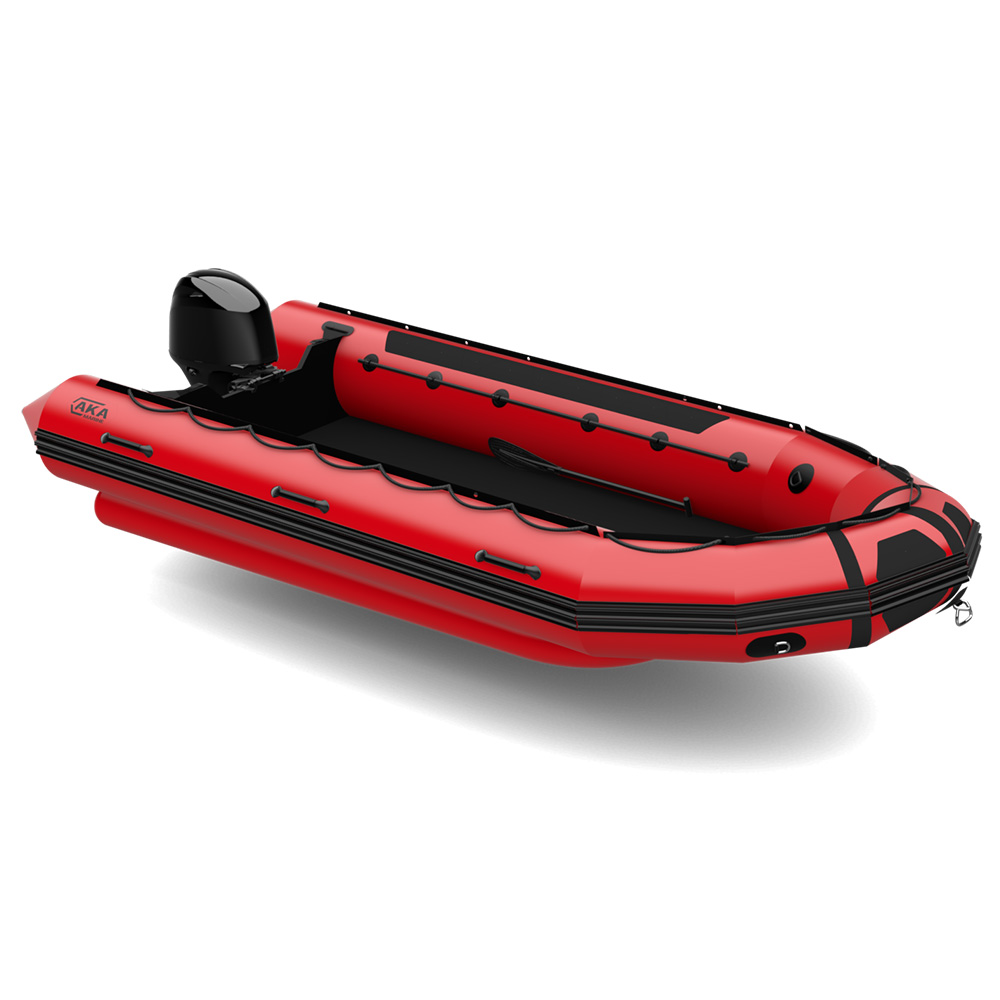

AKA_F53HC_RED
AKA_F53HC_BLACK
AKA_F53HC_GREY
AKA_F53HC_RED

FIB-C Series (CSM-CR)

The FIB-C Series (CSM-CR) is the most versatile foldable boat range.

Thanks to its solid aluminium floor and inflatable keel, the FIB-C Series (CSM-CR) offers a great sturdiness with up to 1,15 tons payload capacity.

Colors

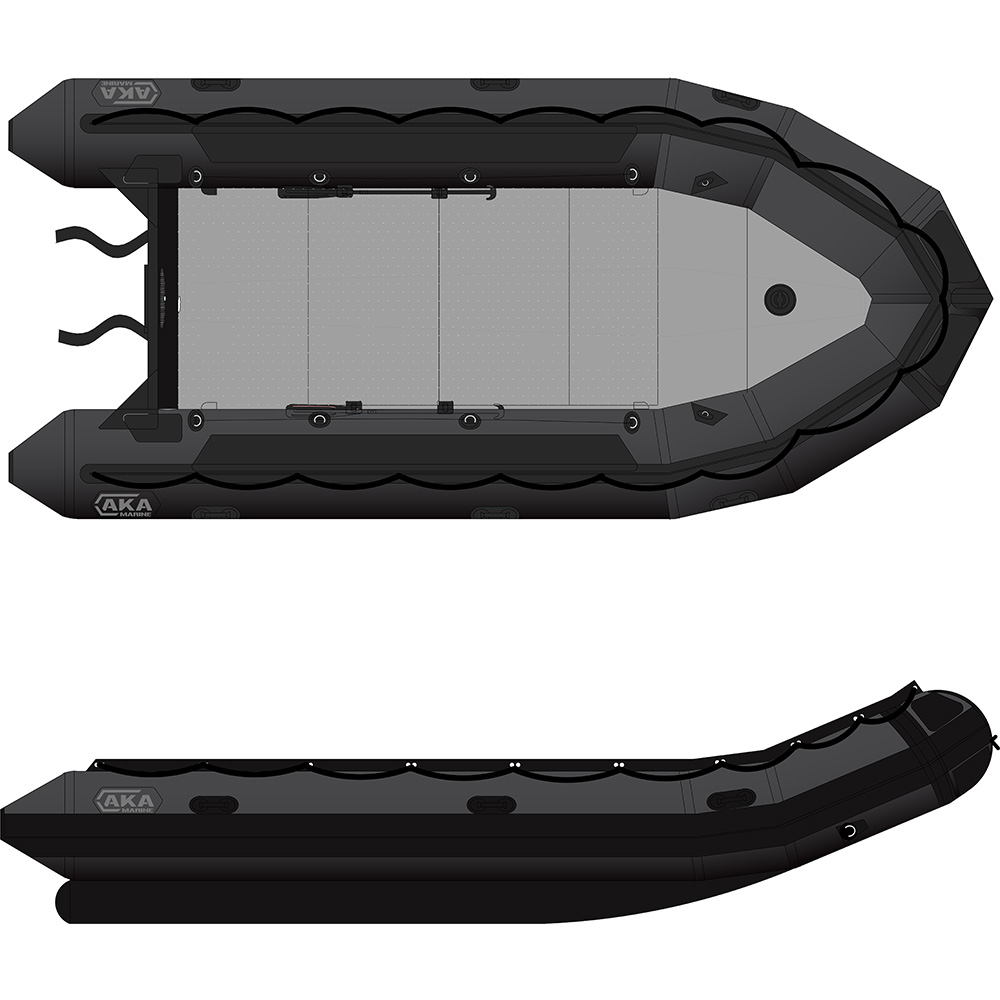

CSM-CR 1100 dtx Black

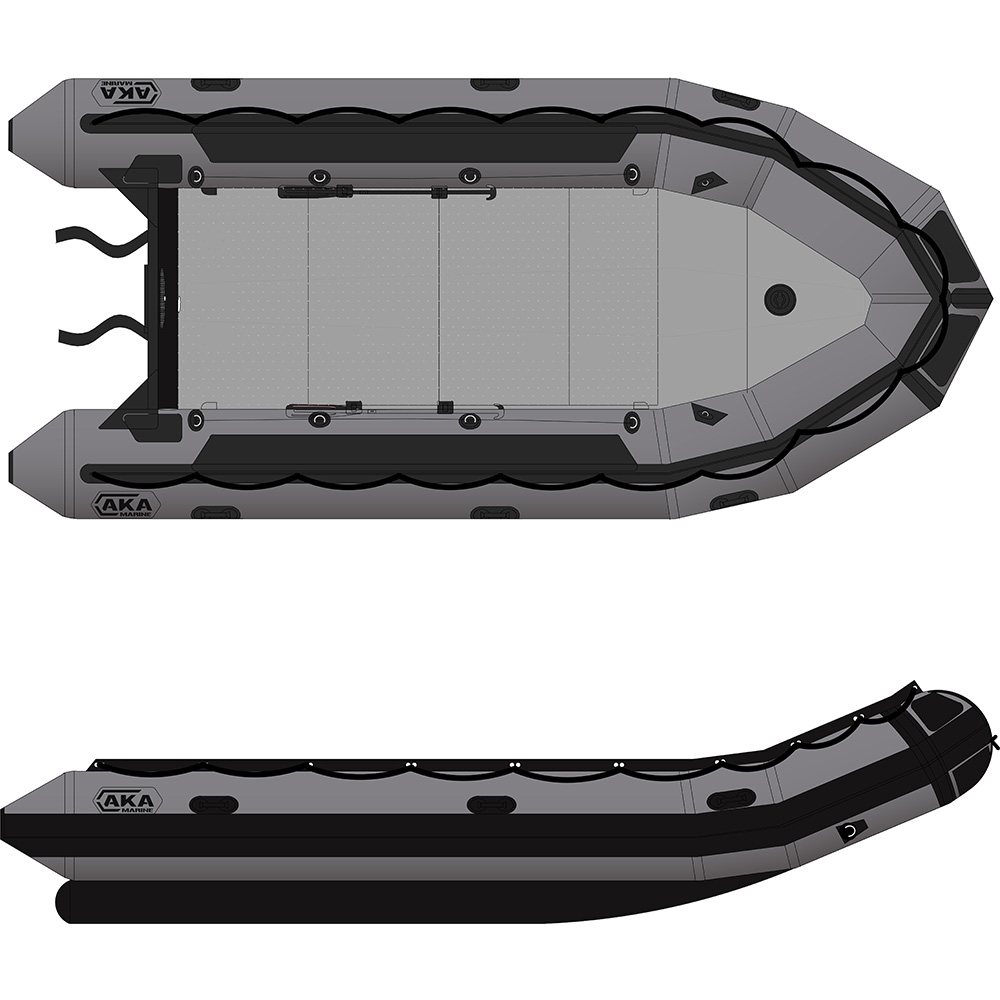

CSM-CR 1100 dtx Medium grey
CSM-CR 1100 dtx Red

Key features

  • High capacity, foldable, heavy duty work boat
  • Solid, anti-skid, aluminum floor for maximum sturdiness
  • Heavy Duty bow fender design
  • Optimized keel protection and tube protection
  • High performance inflatable hull including speed tubes, that provide extra safety, stability, and easier handling.
  • Tubes are in CSM-CR (Chlorosulfonated Polyethylene – Neoprene)
  • Large tube diameter offers huge payload capacity

Recommended for

Law enforcement
  • Patrol
  • Coast Guard
  • Police
  • Administration / Authorities
More for law enforcement use
Professional
  • Marina, port activities
  • Expeditions
  • Hotels & resorts
  • Clubs
More for professional use
Search & rescue
  • First responders
  • Fire brigades
  • Surveillance
More for search & rescue use
Military
  • Army
  • Navy
More for military use
Technical specifications
Dimensions
(meters - feets/inches)
Overall length
5,30 - 17,5''
Inside length
3,73 - 12'3''
Overall width
2,12 - 6'11''
Inside width
1,00 - 3'3``
Buoyancy tube diameter
0,56 - 1'10''
Outboard data
Shaft
Long
Average recommended power (Hp)
60
Average recommended power (kW)
45
Max. power allowed (Hp)
90
Max. power allowed (kW)
67
Max. weight of outboard (kg - lbs)
130 - 287
Capacity
Passengers (ISO Cat C)
12
Maximum payload (kg - lbs) Cat C
1700 - 3748
Total weight (kg - lbs)
177 - 390
Airtight compartments
5+2+1
Folded boat storage dimensions
Shipping dimensions
1,0m3
Floor boards bag dimensions (cm)
125x80x20
Floor boards bag dimensions (feet/inches)
4'1''x2'7''x8''
Tube bag dimensions (cm)
165x80x50
Tube bag dimensions (feet/inches)
5'5''x2'7''x1'8''
Design category
European directive N° 2013/53/ EU
C
Features
Buoyancy tube

  • CSM-CR 1670 dtx fabric (Chlorosulfonated Polyethylene – Neoprene)
  • Lacing cuff and safety grab lines
  • Inner safety grab line
  • Extra fabric seating pads
  • Heavy Duty, anti-chafing, bow fender system
  • Leafield inflation valves
  • Leafield pressure relief valves
  • Large profile rubbing strake
  • 6 carry handles
  • Bow carry handle
  • Large diameter tow rings
  • Bow lifting rings
  • Paddle retainers
  • Reinforced cone ends

Hull

  • Inflatable keel with full length 12 cm bottom strake
  • 2 Side tubes with full lenght 8 cm bottom strake
  • Aluminum floor boards, inc. built-in rails and stringers
  • Transom lifting points
  • Transom towing points
  • Aluminum engine support plate
  • 2 High capacity bailers (elephant trunk type)

Standard equipment

  • 2 paddles
  • Foot pump & pressure gauge
  • Repair kit
  • Owner’s manual

Optional Accessories

  • Steering console
  • Bow bag
  • Diving cylinders holder
  • High debit electric pump
  • Flexible fuel tank (35 L / 70 L)
