Foldable inflatable boats

F59H-C

Foldable inflatable boat | C-Series (CSM-CR)

AKA_F59HC_RED
AKA_F59HC_RED

FIB-C Series (CSM-CR)

The FIB-C Series (CSM-CR) is the most versatile foldable boat range.

Thanks to its solid aluminium floor and inflatable keel, the FIB-C Series (CSM-CR) offers a great sturdiness with up to 1,15 tons payload capacity.

Colors

CSM-CR 1100 dtx Black

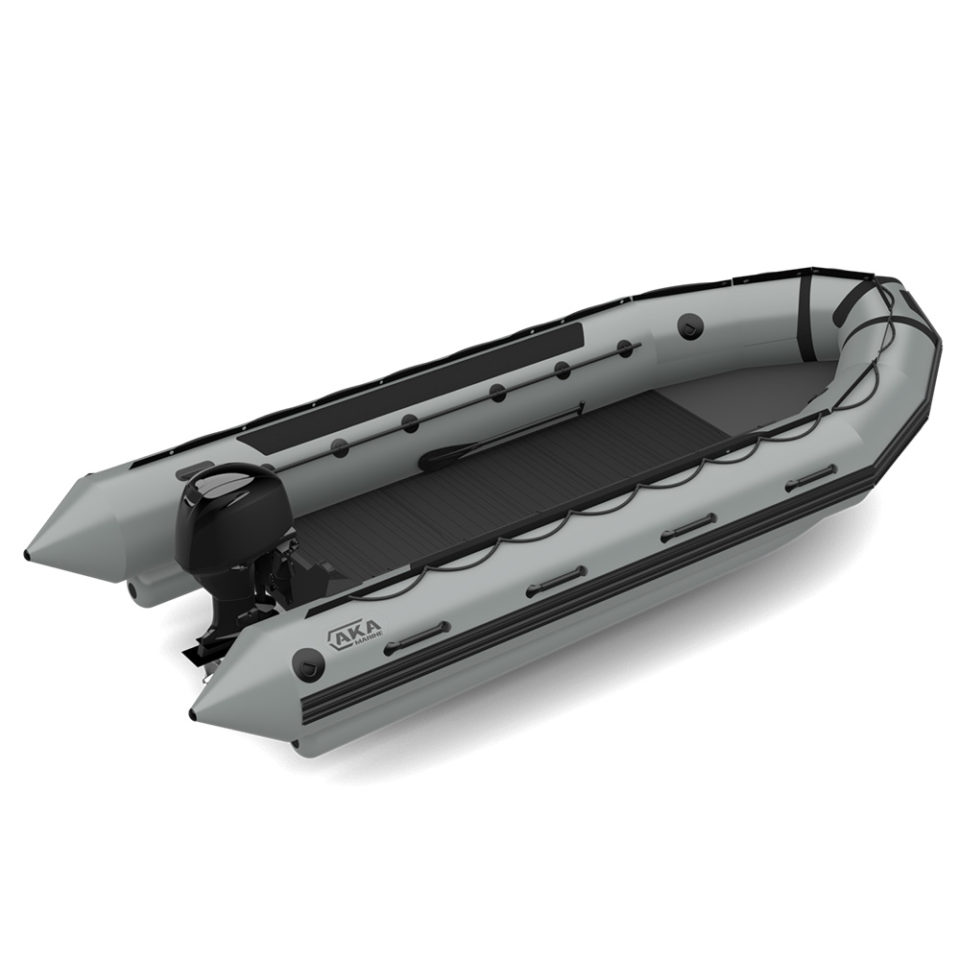

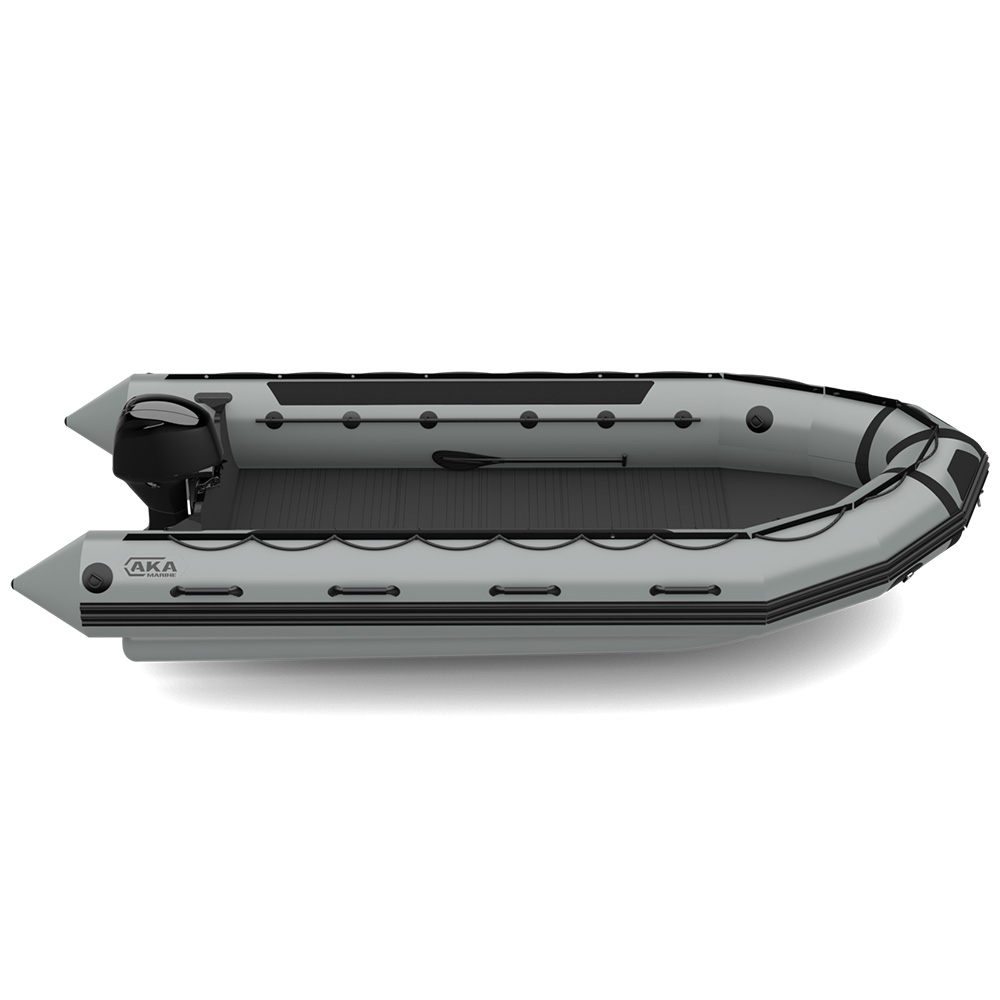

CSM-CR 1100 dtx Medium grey

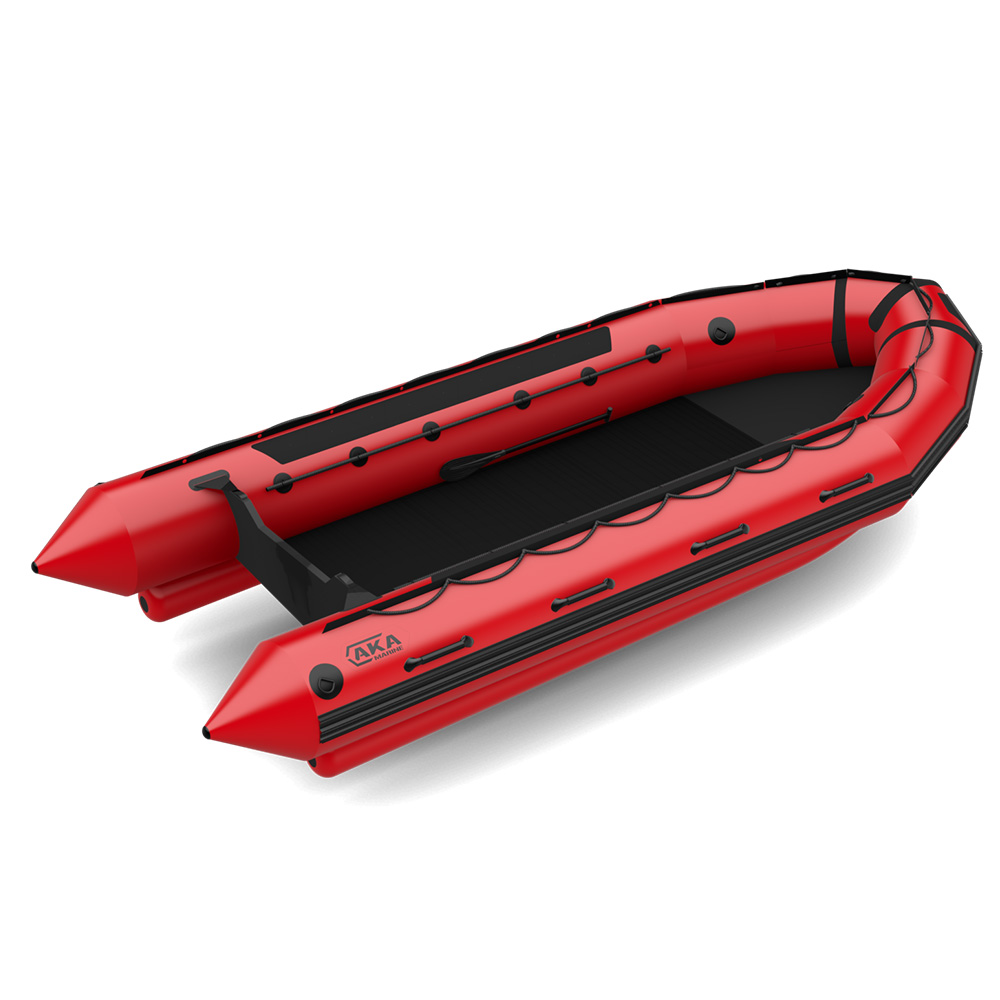

CSM-CR 1100 dtx Red

Key features

  • High capacity, foldable, heavy duty work boat
  • Solid, anti-skid, aluminum floor for maximum sturdiness
  • Heavy Duty bow fender design
  • Optimized keel protection and tube protection
  • High performance inflatable hull including speed tubes, that provide extra safety, stability, and easier handling.
  • Tubes are in CSM-CR (Chlorosulfonated Polyethylene – Neoprene)
  • Large tube diameter offers huge payload capacity
  • Dual Inflation System : 2 points fast inflation system (option), allowing easy access, while boats are stacked on a rack, as well as ability to adjust tube compartments’ pressure independently

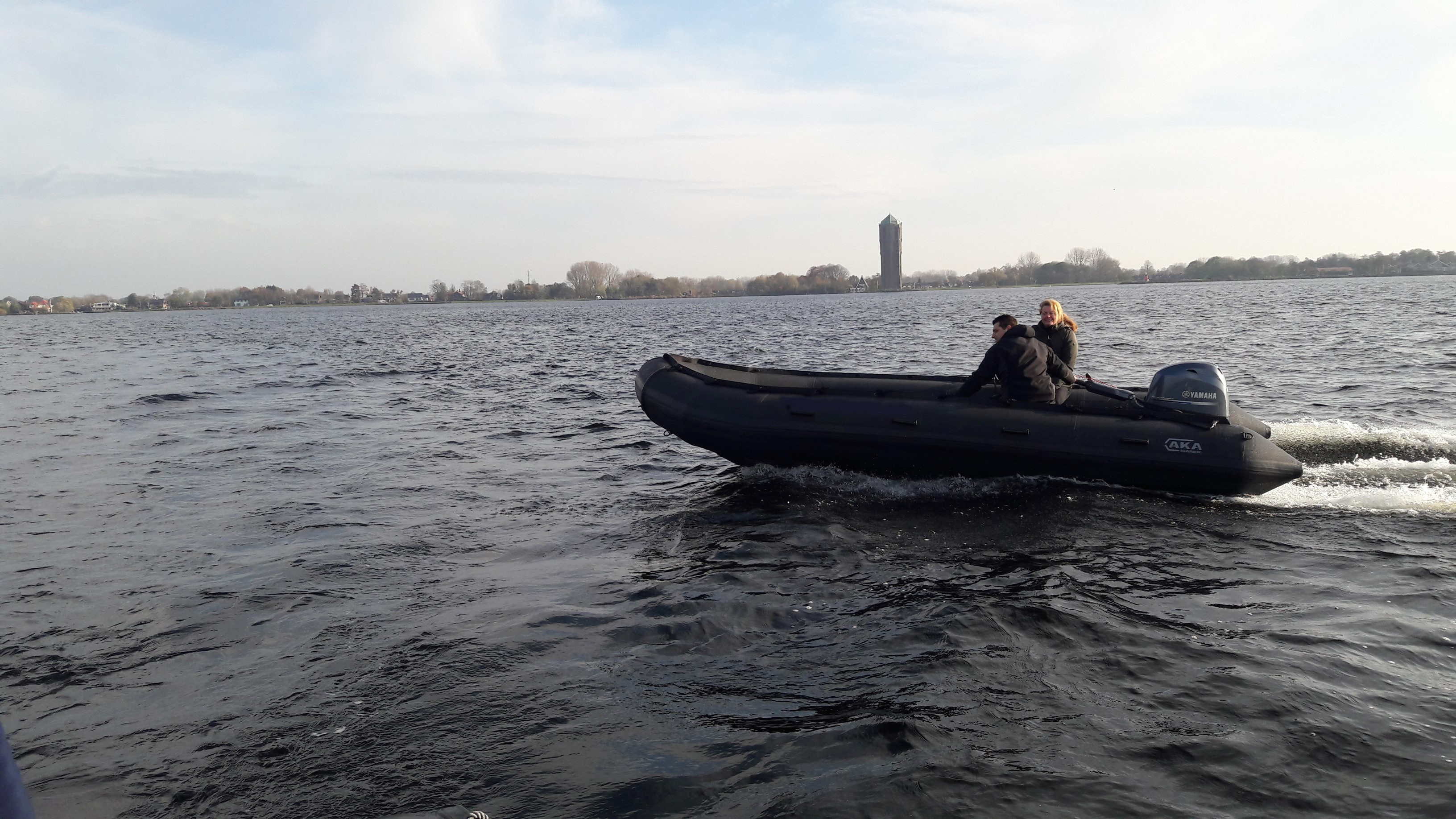

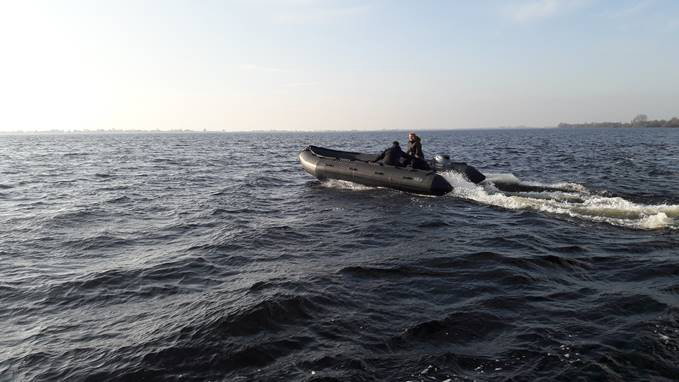

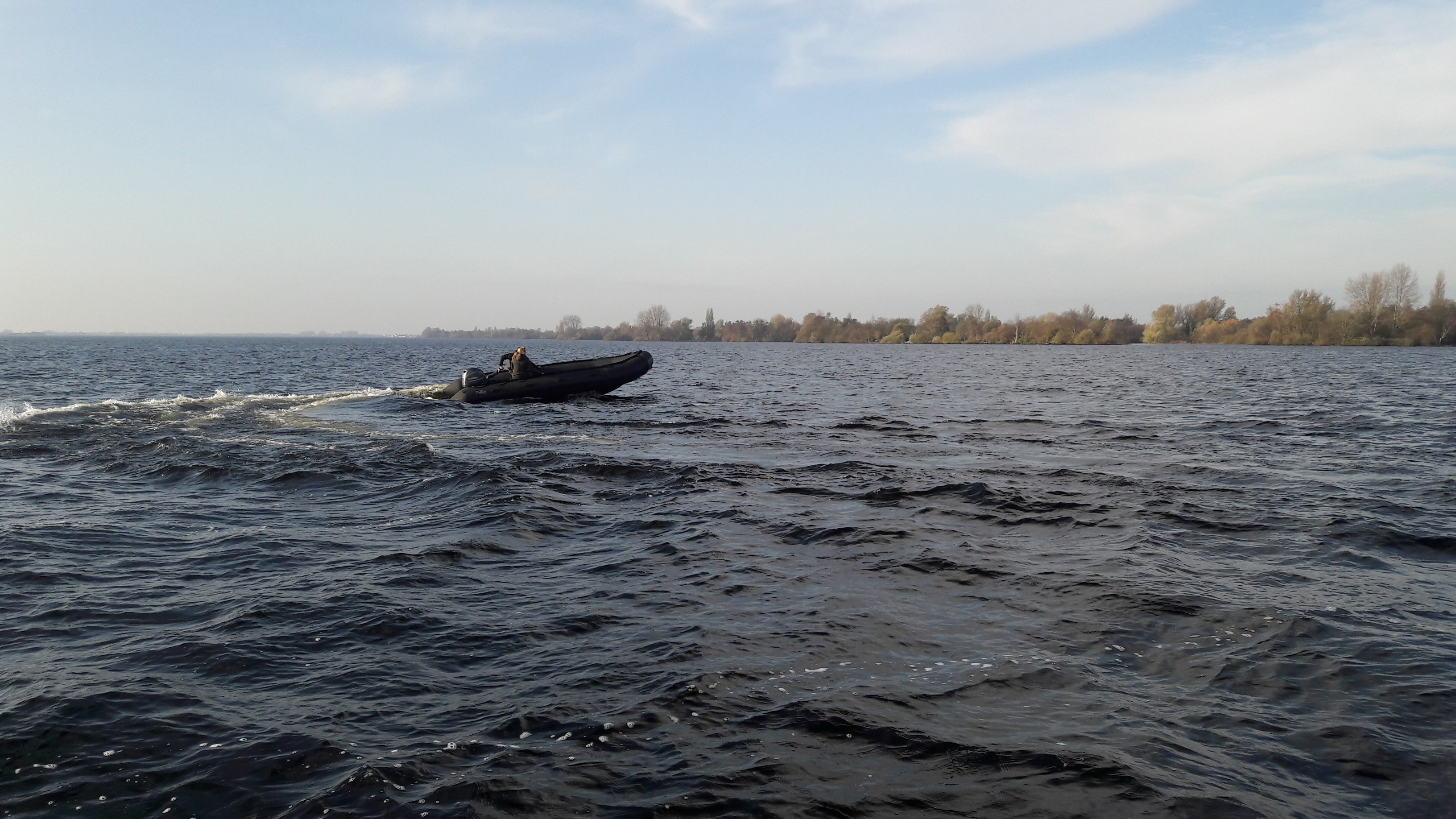

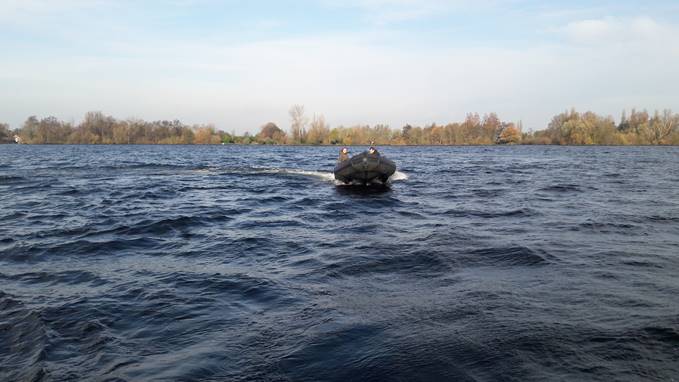

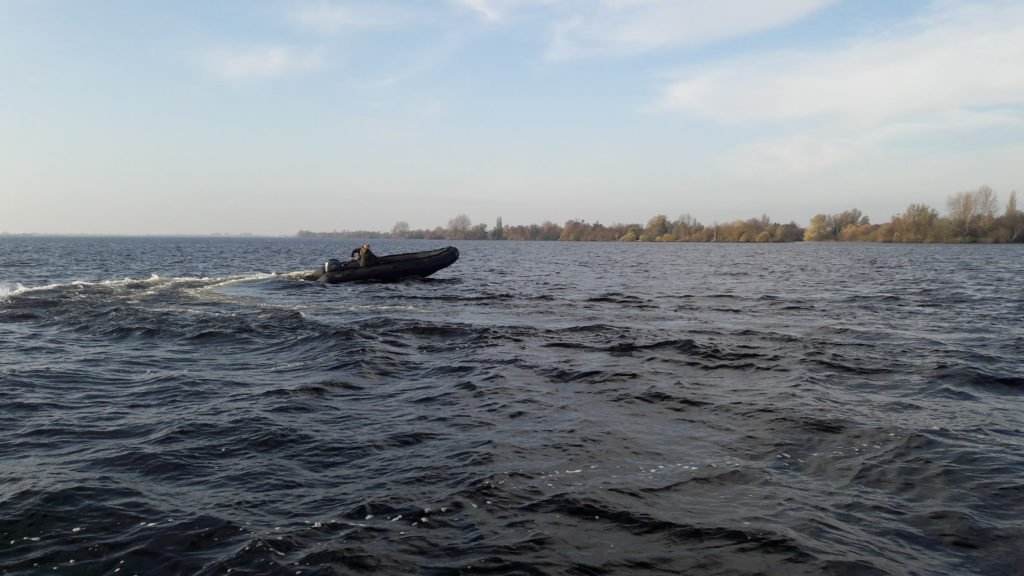

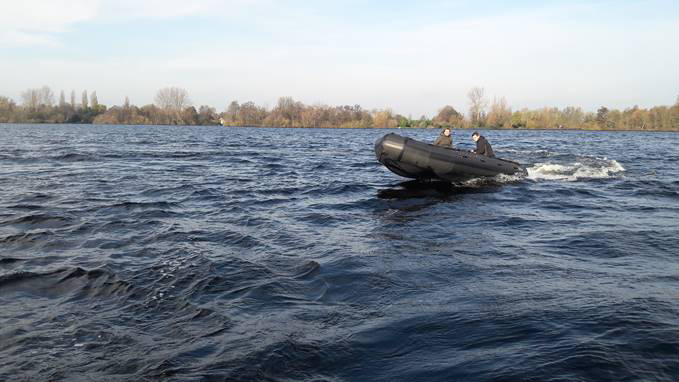

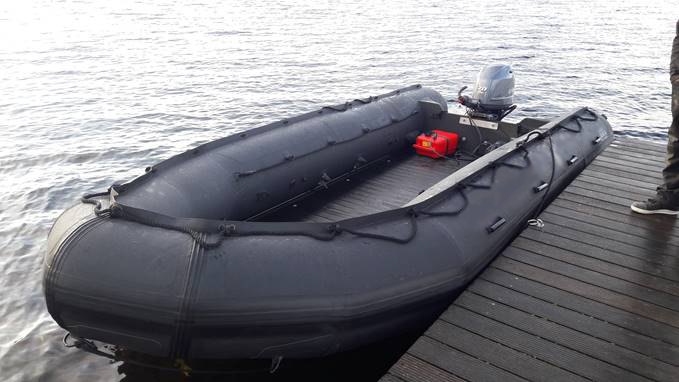

Pictures

Recommended for

Law enforcement
  • Patrol
  • Coast Guard
  • Police
  • Administration / Authorities
More for law enforcement use
Professional
  • Marina, port activities
  • Expeditions
  • Hotels & resorts
  • Clubs
More for professional use
Search & rescue
  • First responders
  • Fire brigades
  • Surveillance
More for search & rescue use
Military
  • Army
  • Navy
More for military use
Technical specifications

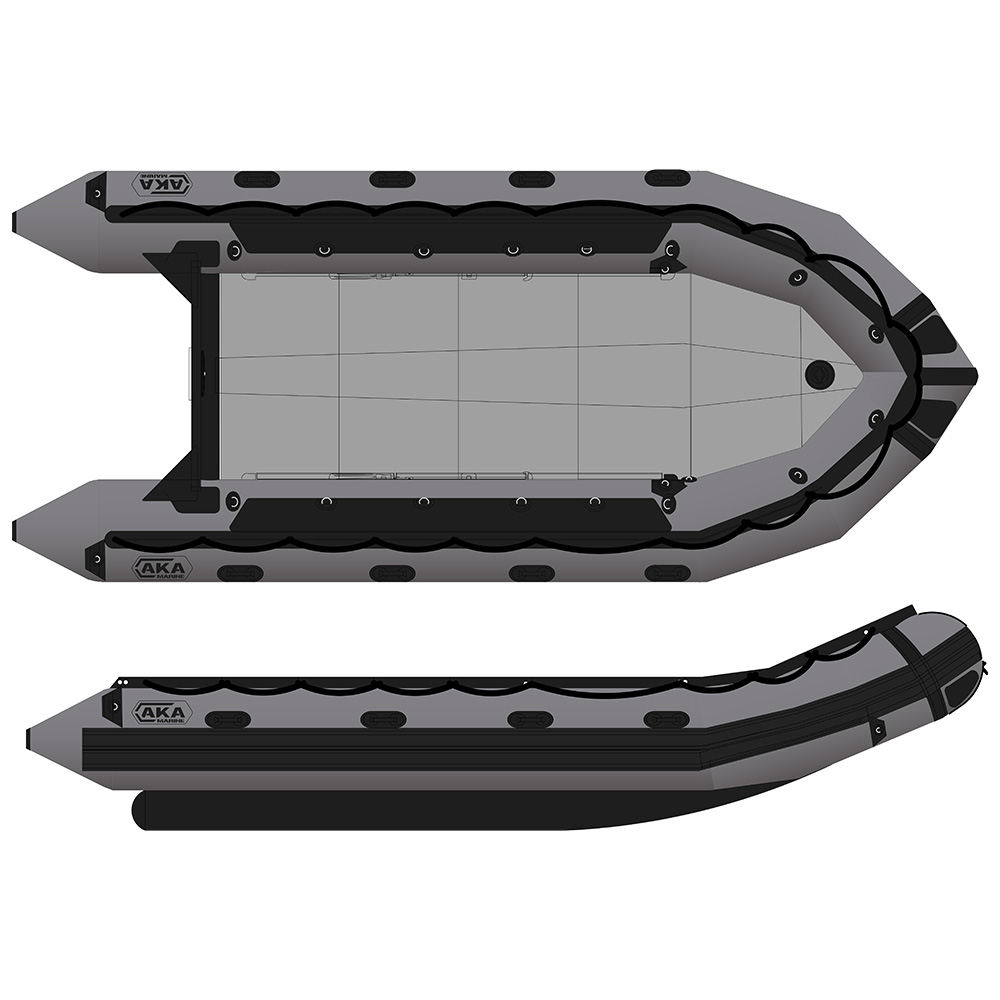

Dimensions
(meters - feets/inches)
Overall length
5,85 - 19,2''
Inside length
4,20 - 13'9''
Overall width
2,48 - 8'2''
Inside width
1,22 - 4'
Buoyancy tube diameter
0,63 - 2'1''
Outboard data
Shaft
Long
Average recommended power (Hp)
75
Average recommended power (kW)
56
Max. power allowed (Hp)
115
Max. power allowed (kW)
86
Max. weight of outboard (kg - lbs)
175 - 386
Capacity
Passengers (ISO Cat C)
16
Maximum payload (kg - lbs) Cat C
2500 - 5512
Total weight (kg - lbs)
277 - 611
Airtight compartments
6+2+1
Folded boat storage dimensions
Shipping dimensions
1,8m3
Floor boards bag dimensions (cm)
146x82x30
Floor boards bag dimensions (feet/inches)
4'9''x2'8''x1'
Tube bag dimensions (cm)
175x95x60
Tube bag dimensions (feet/inches)
5'9''x3'1''x2'
Design category
European directive N° 2013/53/ EU
C
Features
Buoyancy tube

  • CSM-CR 1670 dtx fabric (Chlorosulfonated Polyethylene – Neoprene)
  • Lacing cuff and safety grab lines
  • Inner safety grab line
  • Extra fabric seating pads
  • Heavy Duty, anti-chafing, bow fender system
  • Leafield inflation valves
  • Leafield pressure relief valves
  • Large profile rubbing strake
  • 8 carry handles
  • Bow carry handle
  • Large diameter tow rings
  • Bow lifting rings
  • Paddle retainers
  • Reinforced cone ends

Hull

  • Inflatable keel with full length 12 cm bottom strake
  • 2 Side tubes with full lenght 8 cm bottom strake
  • Aluminum floor boards, inc. built-in rails and stringers
  • Transom lifting points
  • Transom towing points
  • Aluminum engine support plate
  • 2 High capacity bailers (elephant trunk type)

Standard equipment

  • 4 paddles
  • Foot pump & pressure gauge
  • Repair kit
  • Owner’s manual

Optional Accessories

  • D.I.S (Dual Inflation System)
  • Steering console
  • Bow bag
  • Diving cylinders holder
  • High debit electric pump
  • Flexible fuel tank (35 L / 70 L)
