Rigid inflatable boats

R69-C

Rigid inflatable boat | C-Series

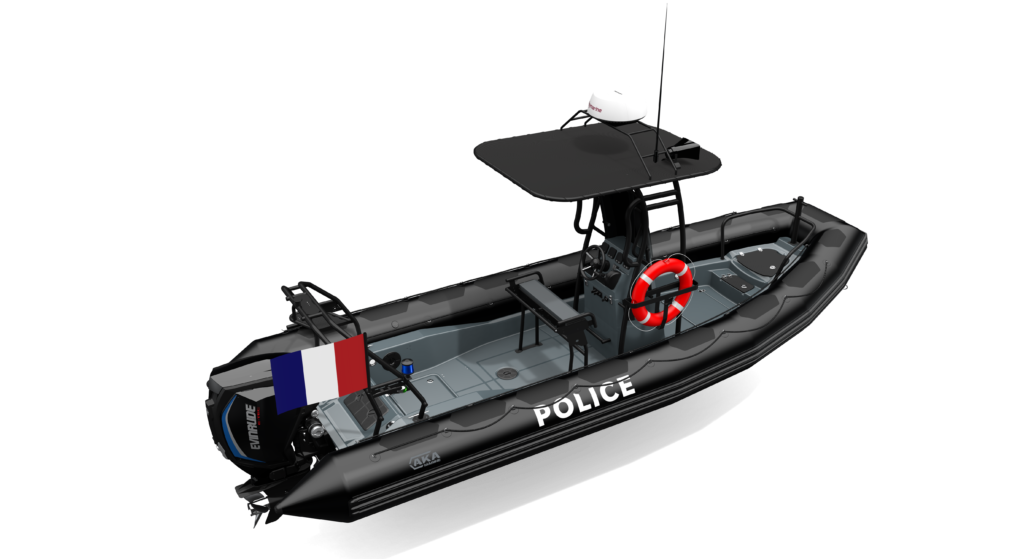

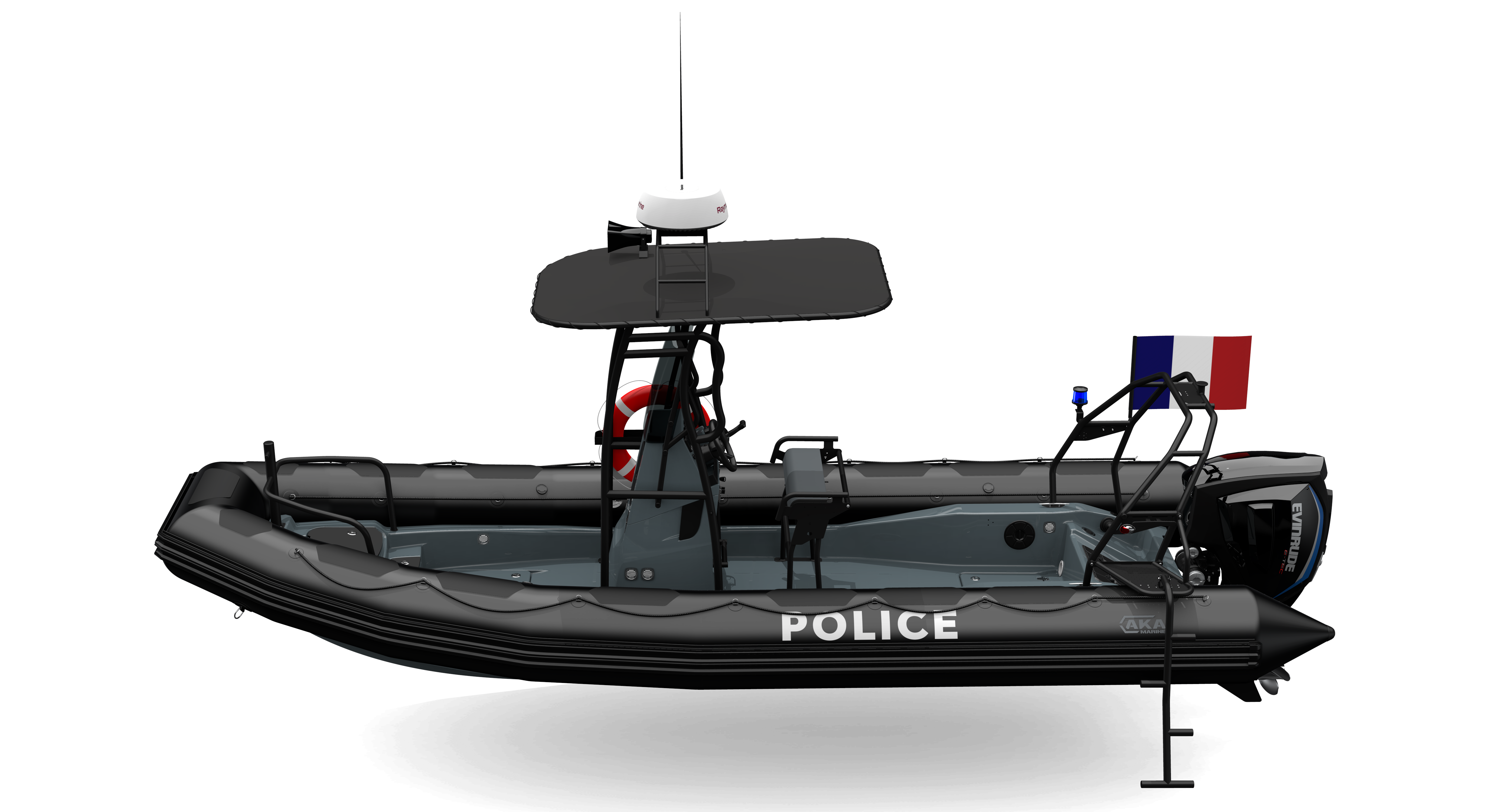

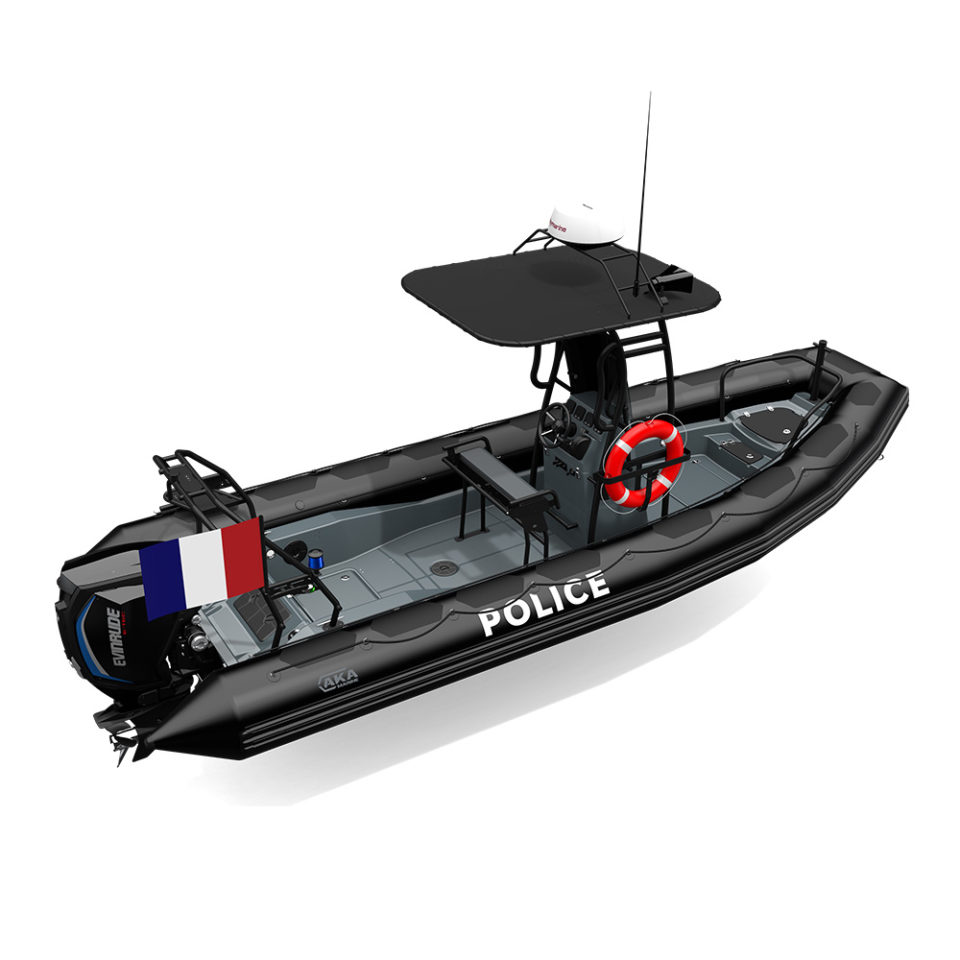

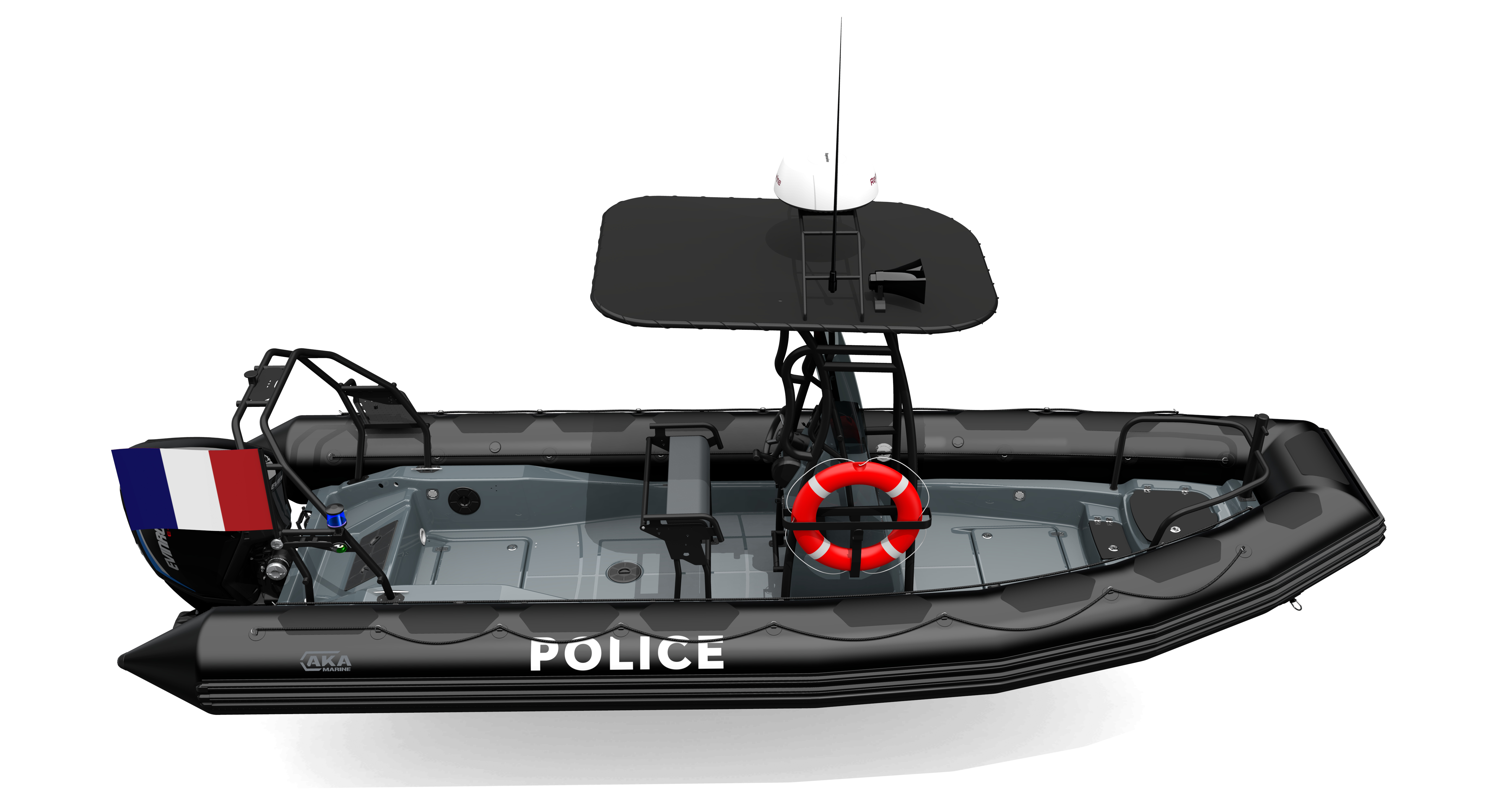

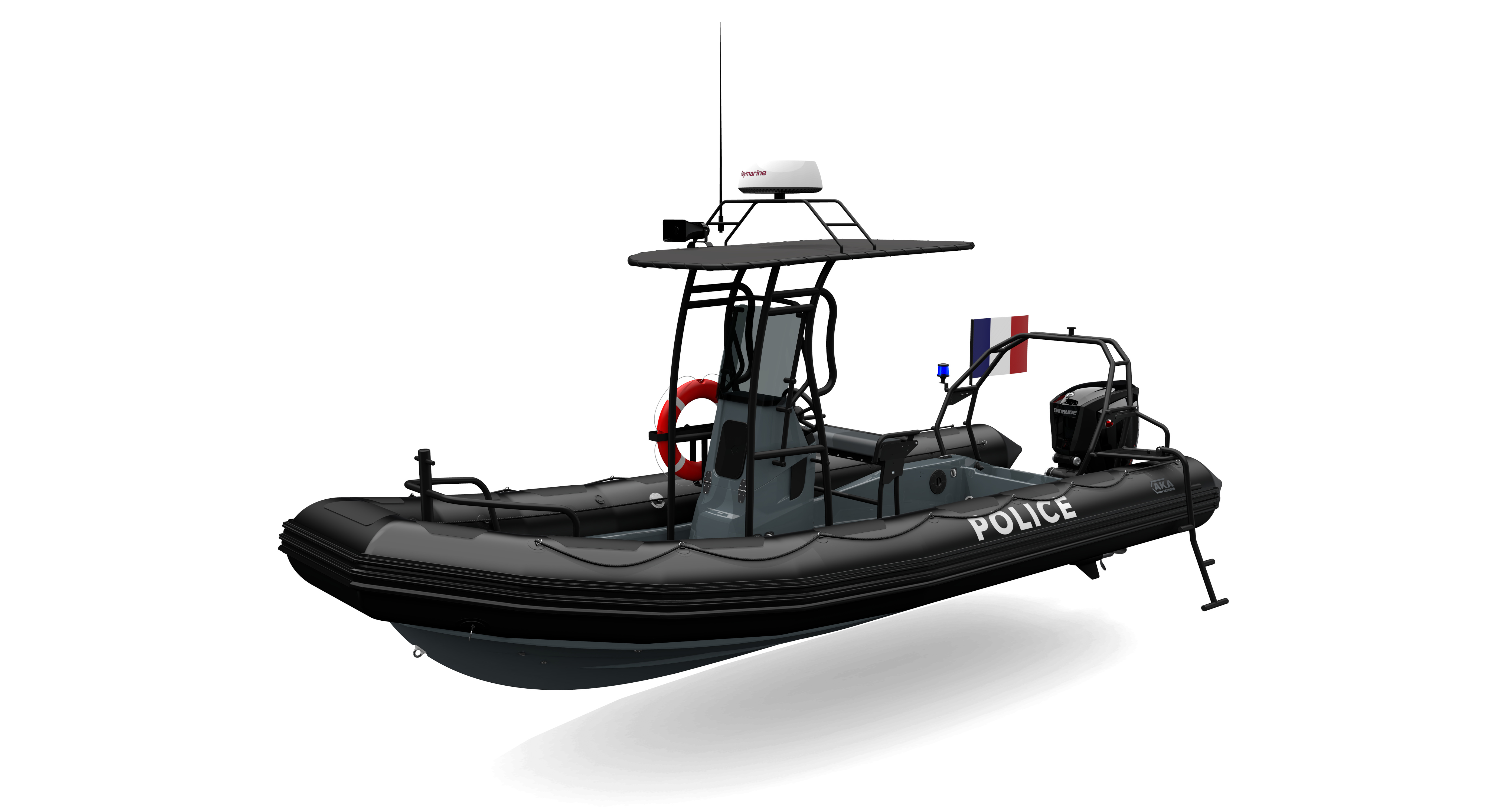

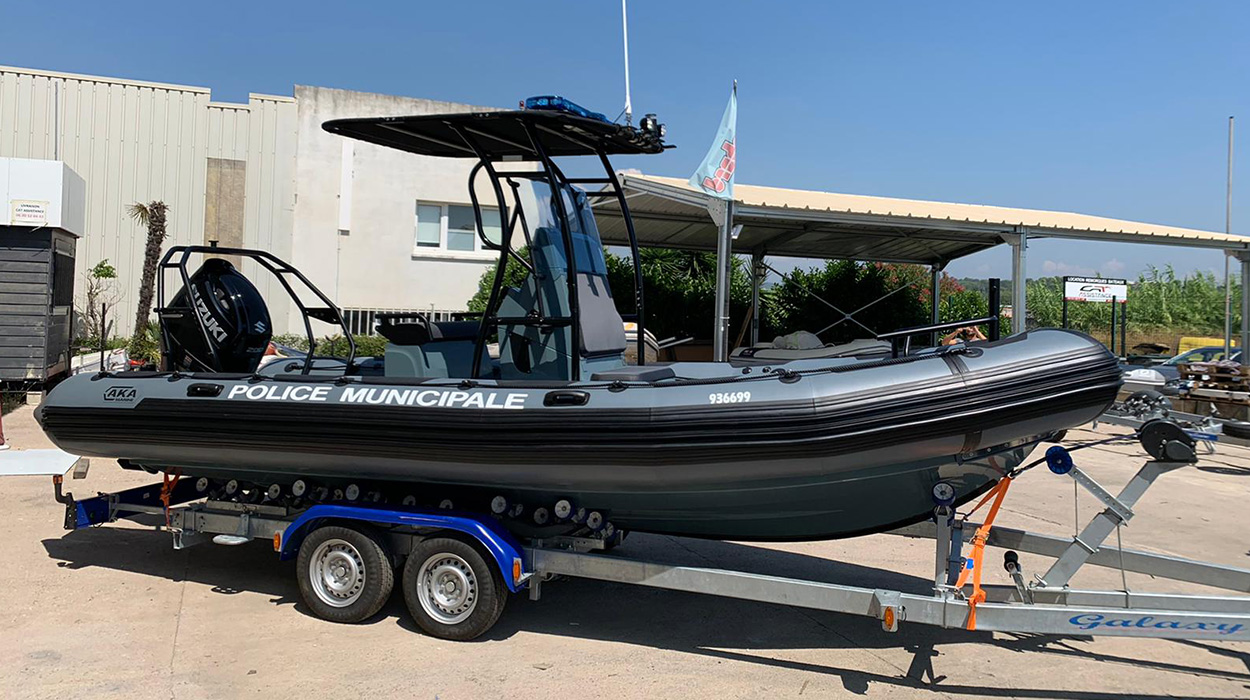

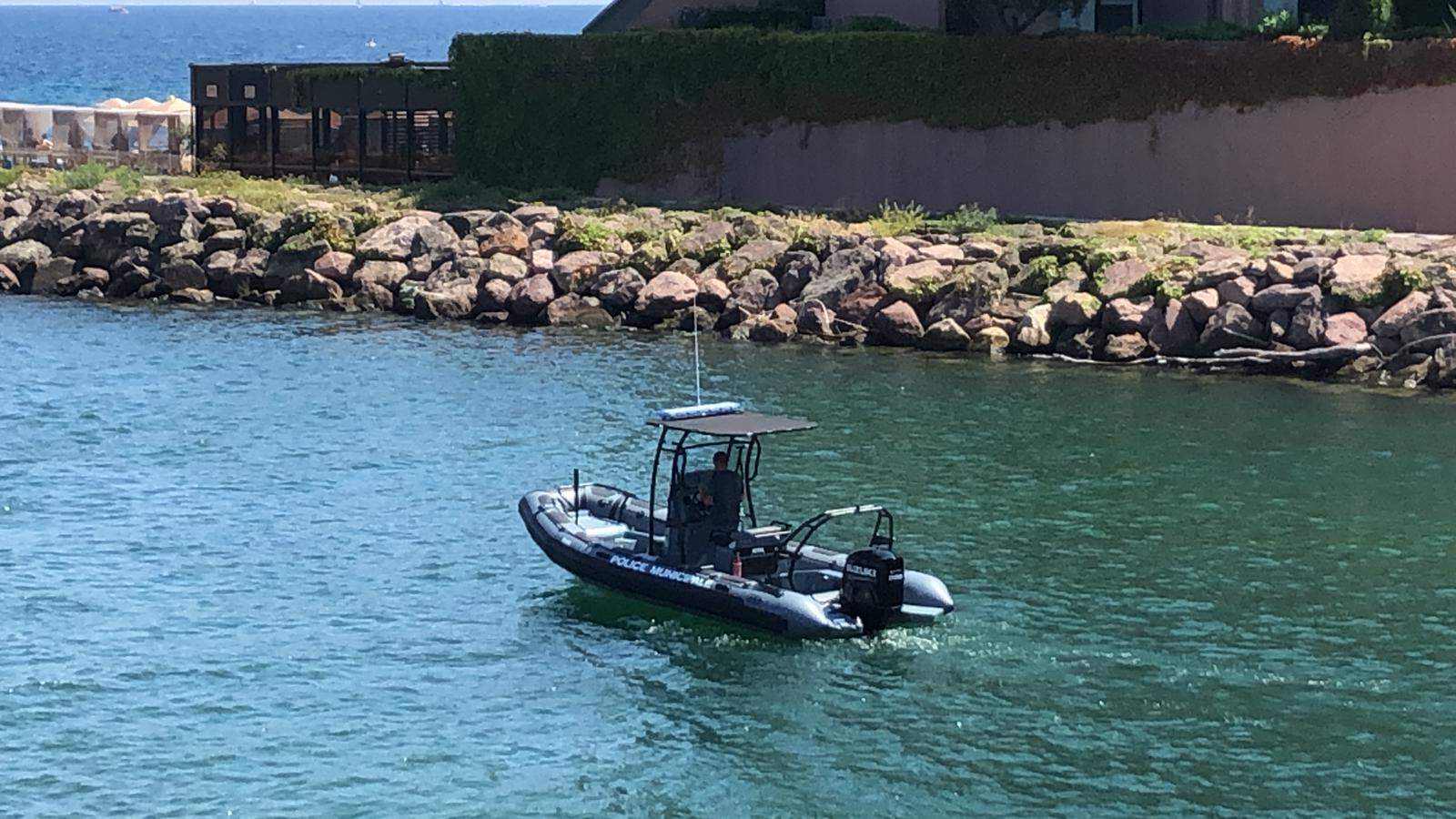

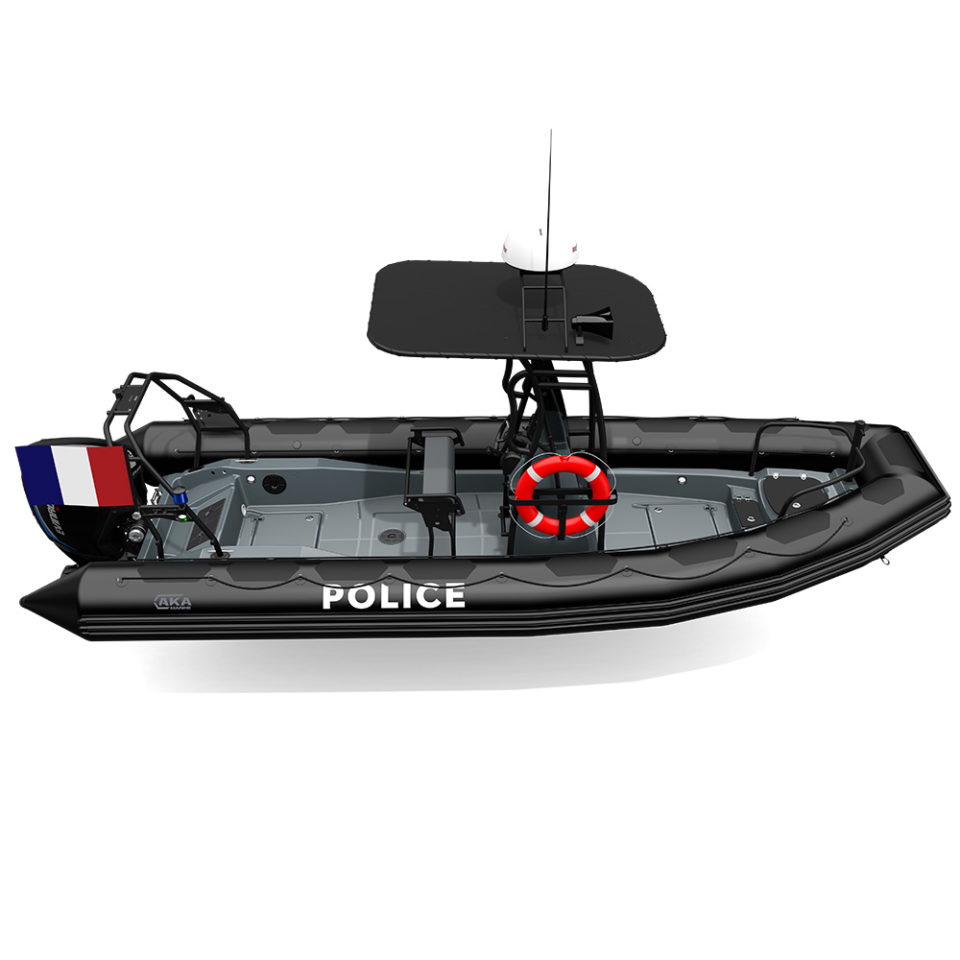

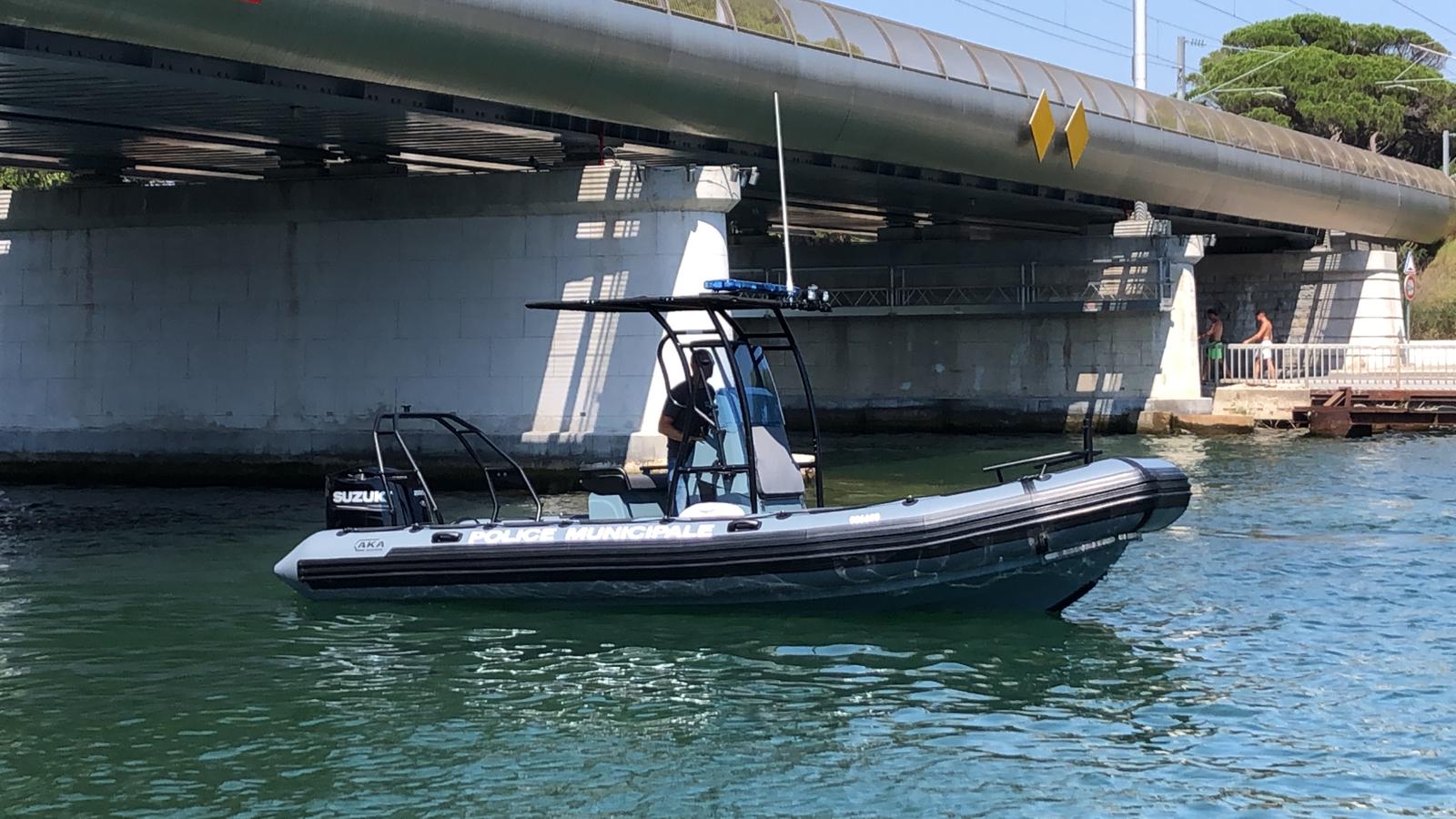

R69-C Police
R69-C Police

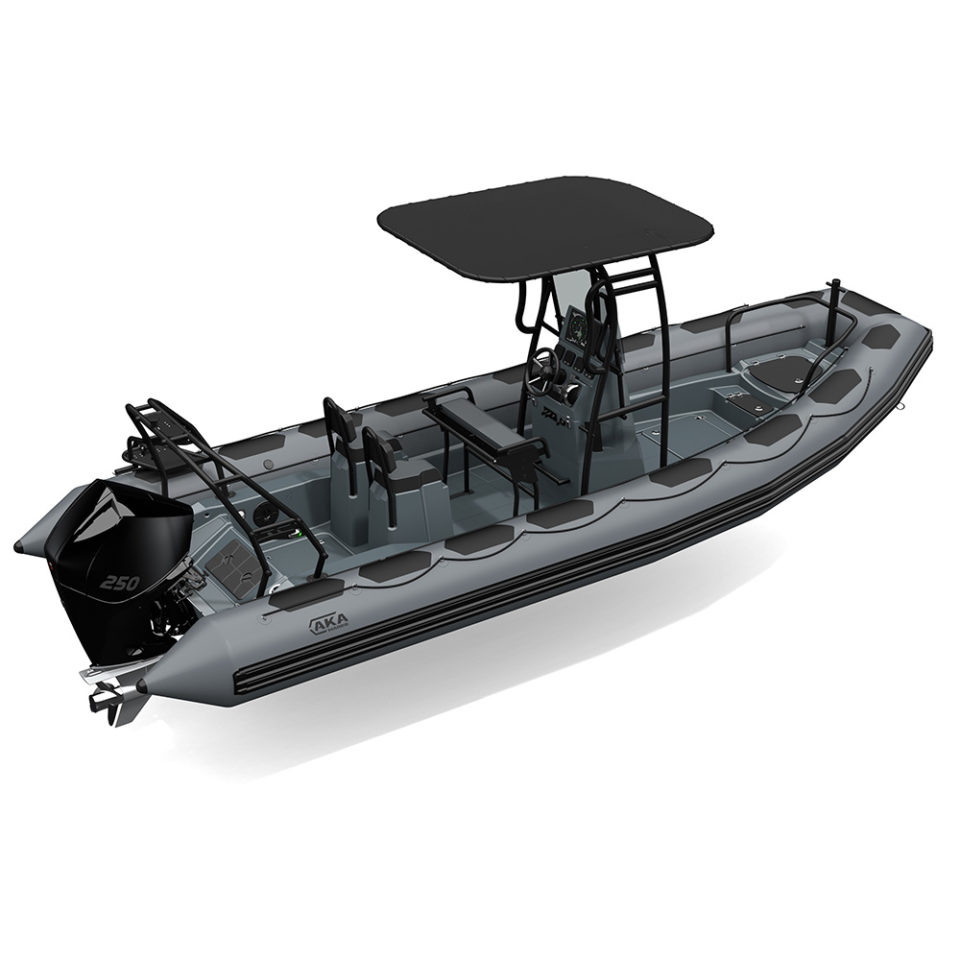

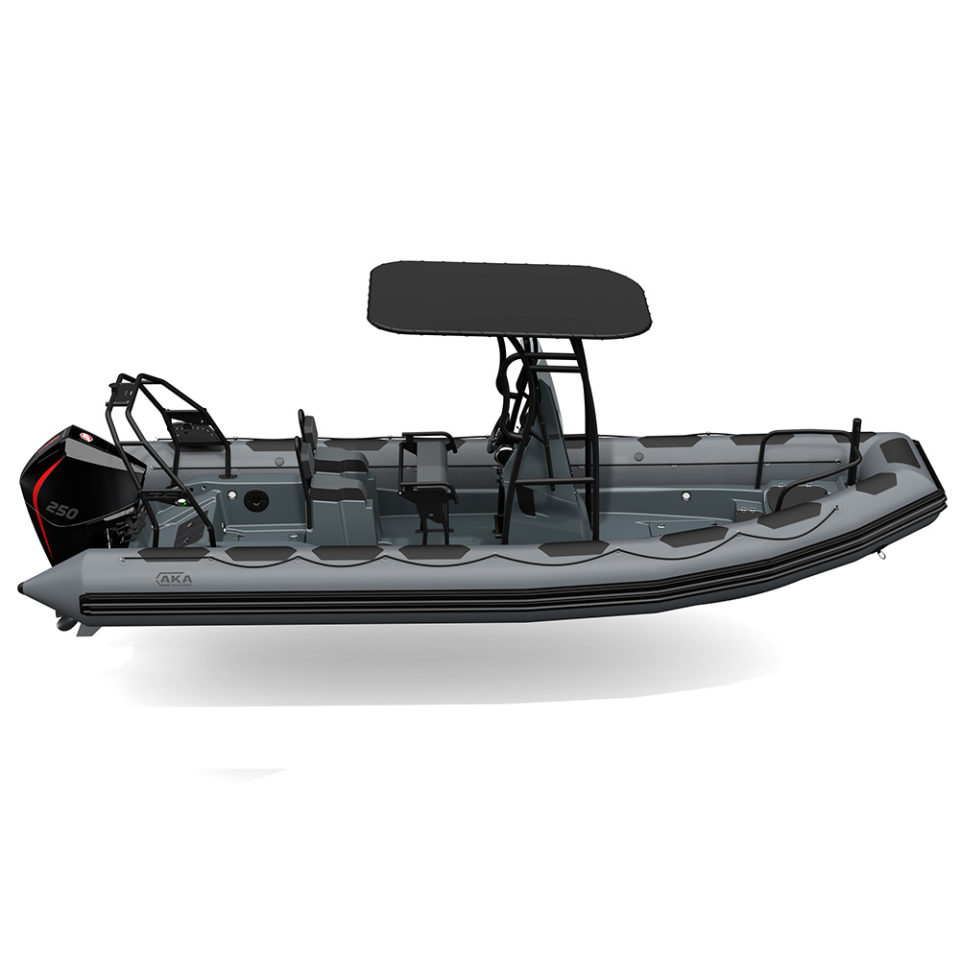

AKA R69-C GREY
AKA R69-C GREY
R69-C Police
R69-C Police
AKA R69-C GREY
AKA R69-C GREY

RIB-C Series

A multi-purpose fast responder RIB with twin engine capacity, the RIB-C Series (available in CSM-CR) is the most versatile in its class.

It features a self-bailing deck, an under-deck cable routing and removable slide-on tubes.

Colors

CSM-CR 1670 dtx Black
CSM-CR 1670 dtx Medium grey
CSM-CR 1670 dtx Orange

Key features

  • Multi-purpose Fast Responder RIB
  • Twin engine capacity
  • Highly customizable
  • Long range autonomy (built-in fuel tank)
  • Under-deck cable routing
  • Self-bailing deck
  • Tubes are in CSM-CR (Chlorosulfonated Polyethylene – Neoprene)
  • Removable slide-on tubes

Video

Recommended for

Law enforcement
  • Patrol
  • Coast Guard
  • Police
  • Administration / Authorities
More for law enforcement use
Professional
  • Marina, port activities
  • Expeditions
  • Hotels & resorts
  • Clubs
More for professional use
Search & rescue
  • First responders
  • Fire brigades
  • Surveillance
More for search & rescue use
Military
  • Army
  • Navy
More for military use
Technical specifications
Dimensions
(meters - feets/inches)
Overall length
6,9 - 22'8''
Inside length
5,71 - 18'9''
Overall width
2,54 - 8'4''
Inside width
1,39 - 4'7''
Buoyancy tube diameter
0,575 - 1'11''
Outboard data
Shaft
Extralong
Min. recommended power (Hp)
115
Min. recommended power (kW)
85
Max. recommended power (Hp)
200
Max. recommended power (kW)
147
Max. power allowed (Hp)
250
Max. power allowed (kW)
184
Max. weight of outboard (kg - lbs)
307 - 677
Max. speed (km/h - mph)
98 - 61
Capacity
Passengers (ISO B/C)
5/16
Max payload* (kg-lbs) Cat C (ISO14945)
2080- 4586
Max payload* (kg-lbs) Cat B (ISO14945)
1270- 2800
Total weight (kg - lbs)
820 - 1808
Airtight compartments
5
Hull storage dimensions
(meters - feets/inches)
Length
6,06 - 19'11''
Width
1,81 - 5'11''
Height
1,21 - 4'
Hull angle
24°
Design category
European directive N° 2013/53/ EU
B/C
Twin-engine data
Shaft
Long
Max. power allowed (Hp)
2x130
Max. power allowed (kW)
2x96
Max. weight of outboard (kg - lbs)
2x244 - 2x538
* The maximum payload rating has been calculated according to ISO standard (14945). Operating at or near maximum payloads is only advised in calm water and at reduced speeds. B category maximum payload specifications may vary according to the outboard and equipment configuration, and will go through individual certification by notified body.
Features
Buoyancy tube

  • CSM-CR 1670 dtx fabric (Chlorosulfonated Polyethylene – Neoprene)
  • Removable tube system
  • Anti-skid patches
  • Heavy Duty, anti-chafing, bow fender system
  • Polyester internal / external Grab line
  • Leafield inflation valves
  • Leafield pressure relief valves
  • Extra Large profile rubbing strake
  • 4 external handles
  • Reinforced cone ends

Hull

  • Fibreglass deep V-shaped hull
  • Moulded non-skid, self-bailing deck
  • Bow locker
  • Stern technical compartment
  • 2 Bilge lockers
  • 1 Bow D-ring
  • 2 Towing rings
  • 2 High volume self-bailer
  • 2 Stern mooring cleats
  • 1 Stainless steel mooring bollard (100 mm)

Standard equipment

  • Built-in fuel tank + fuel/water separator : 200 L
  • Electrical circuit with battery coupler and circuit breaker
  • 1 Bilge pump
  • 2 paddles
  • Foot pump & pressure gauge
  • Repair kit
  • Owner’s manual

Optional accessories

  • GRP Console Large
  • GRP Console XLarge
  • Double stainless steel bolster
  • Single stainless steel bolster
  • Jockey seat
  • Roll-bar
  • T-TOP
  • Bow rail
  • Tow post (bow/stern)
  • Rope guard
  • Diving cylinders holder
